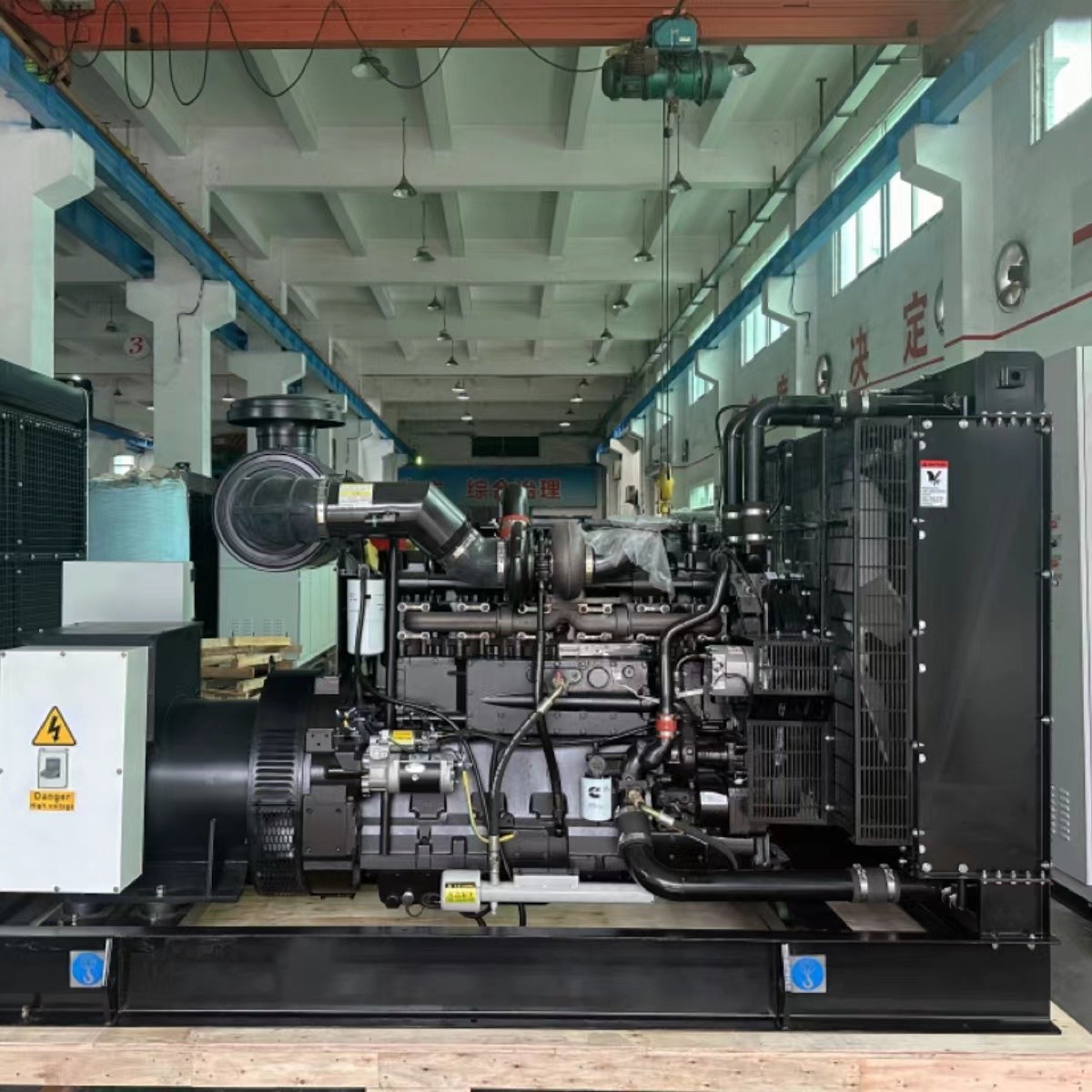

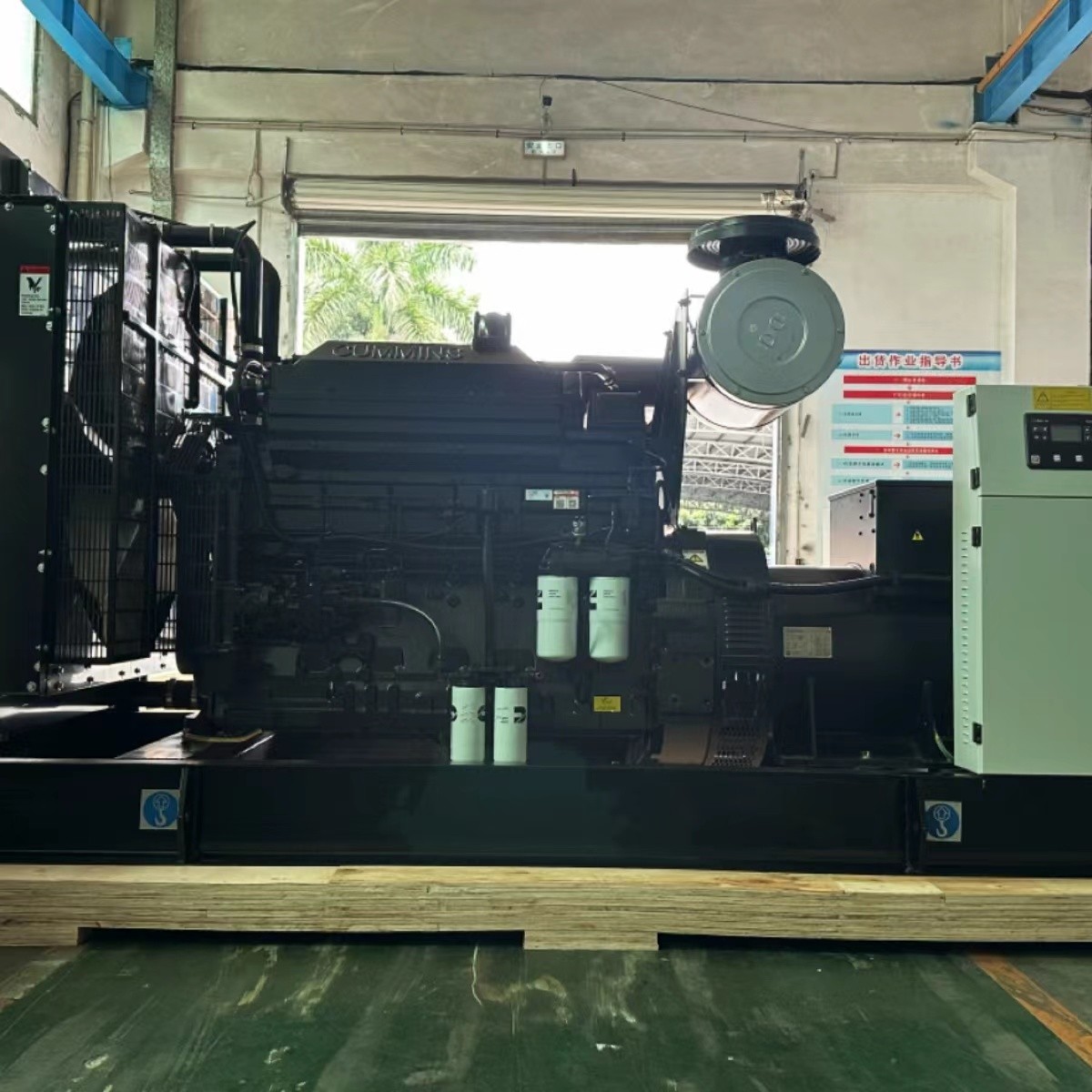

Continuous Power 280kW Open Type Cummins Diesel Generator set
Delivery: Continuous Power 280kW Open Type Cummins Diesel Genset

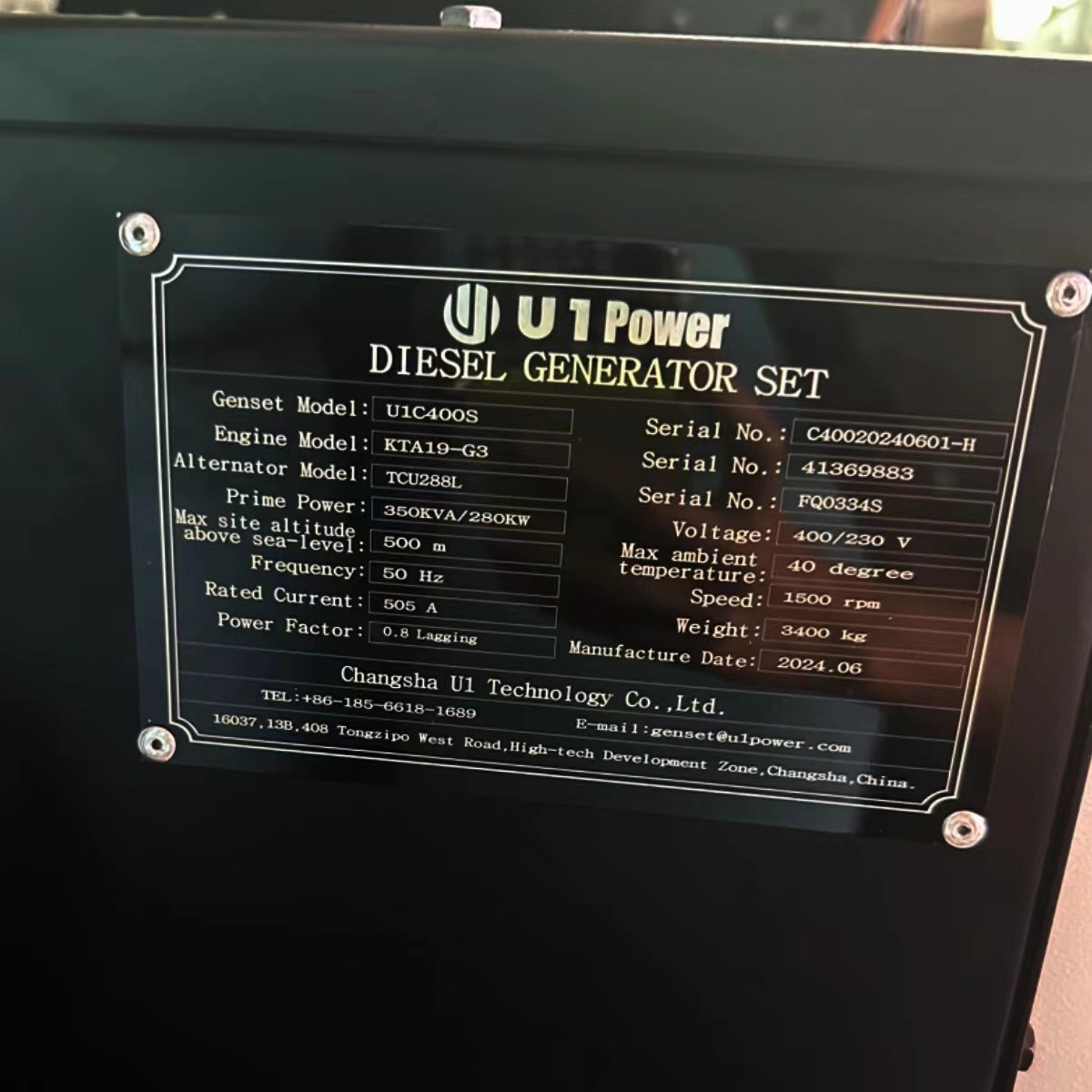

| U1C400S 280kW Open Type Cummins Diesel Genset Technical Parameters | |
| Genset Model: | U1C400S |

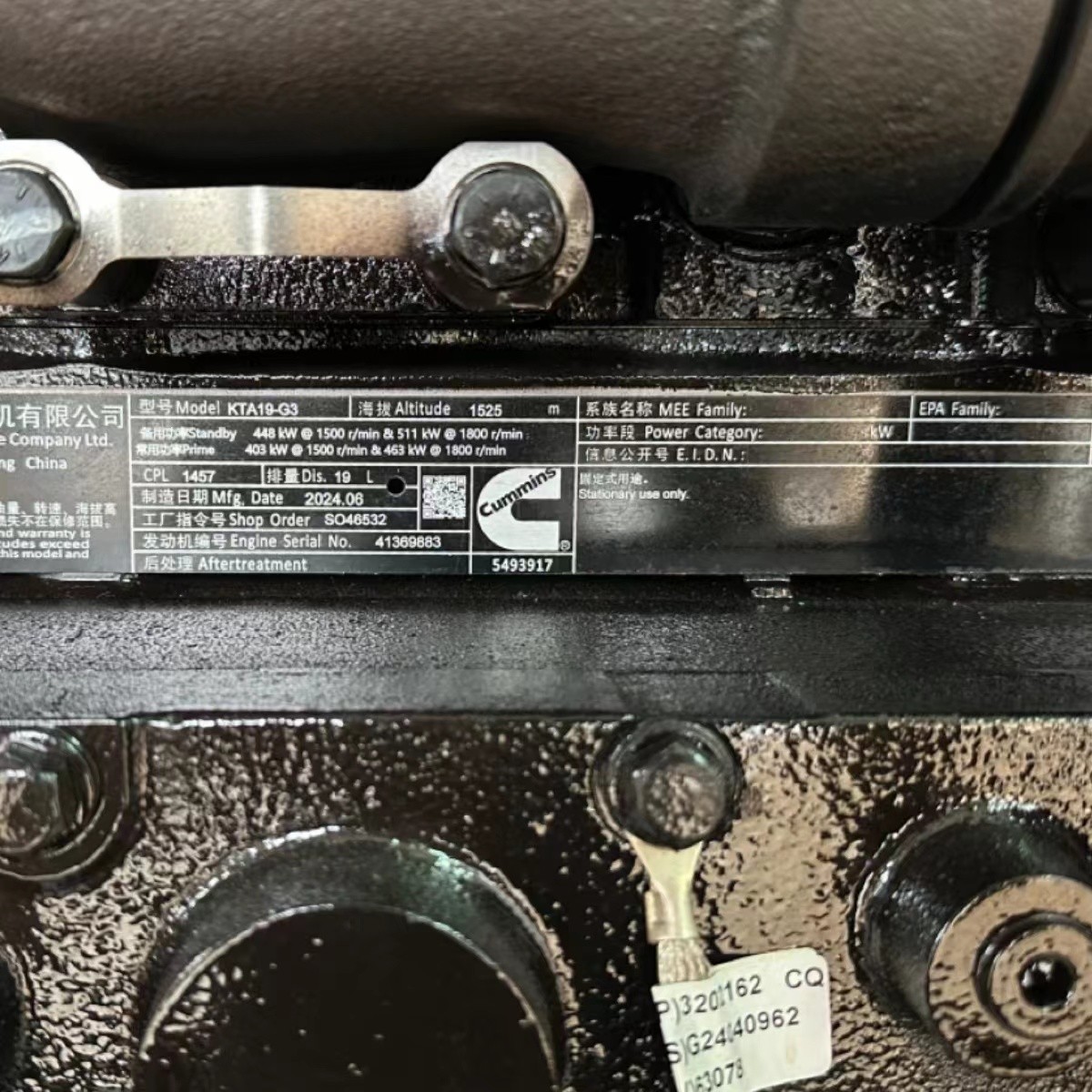

| Engine Model: | Cummins KTA19-G3 |

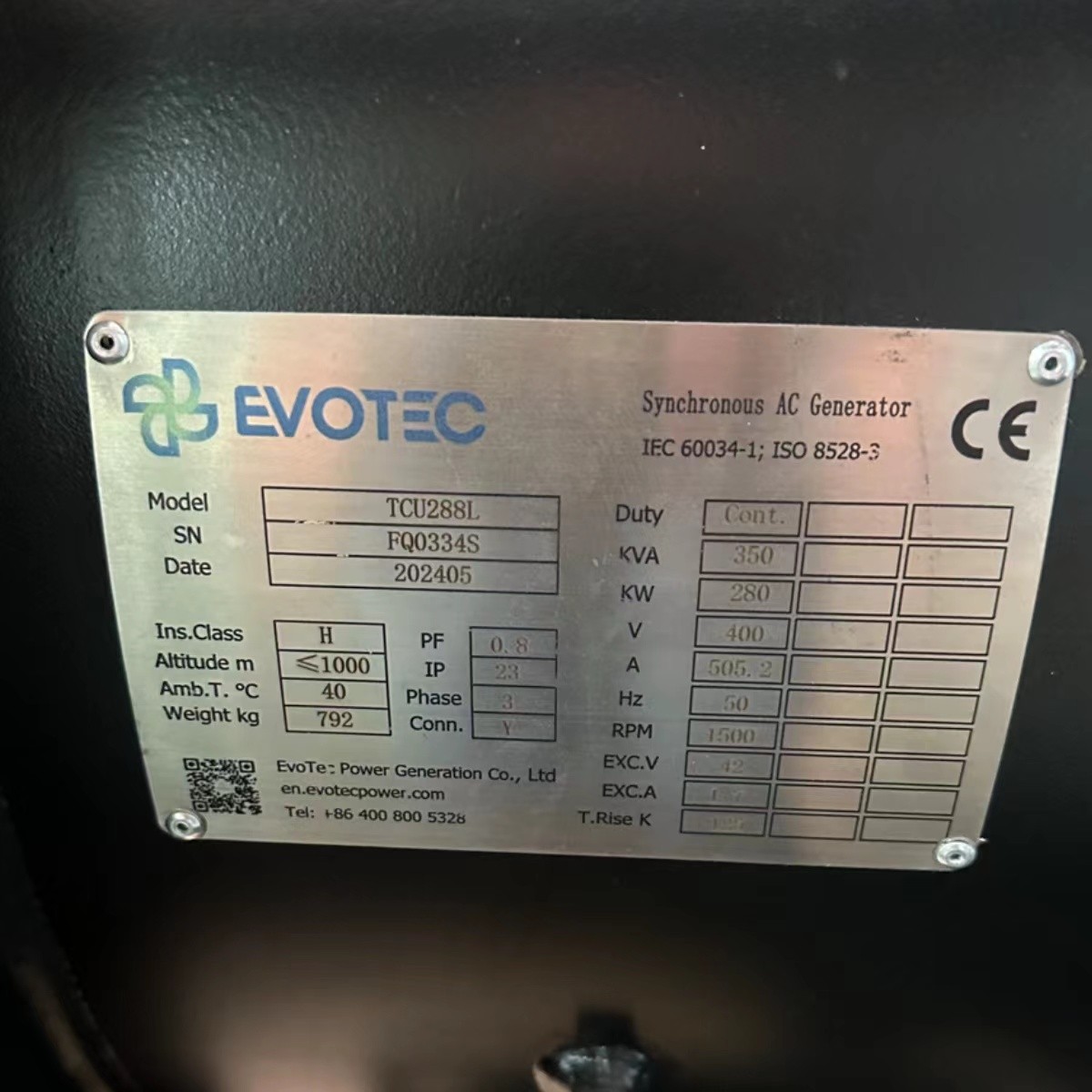

| Alternator Model: | Evotec TCU288L |
| Serial No.: | C40020240601-H |
| 41369883 | |
| FQ0334S | |
| Prime Power: | 350kVA/280kW |
| Voltage: | 400/230V |
| Max Site Altitude above Sea-level: | 500m |
| Max Ambient Temperature: | 40 degree |
| Frequency: | 50Hz |
| Speed: | 1500rpm |
| Rated Current: | 505A |
| Weight: | 3400kg |
| Power Factor: | 0.8 lagging |
| Manufacture Date: | 2024.06 |
