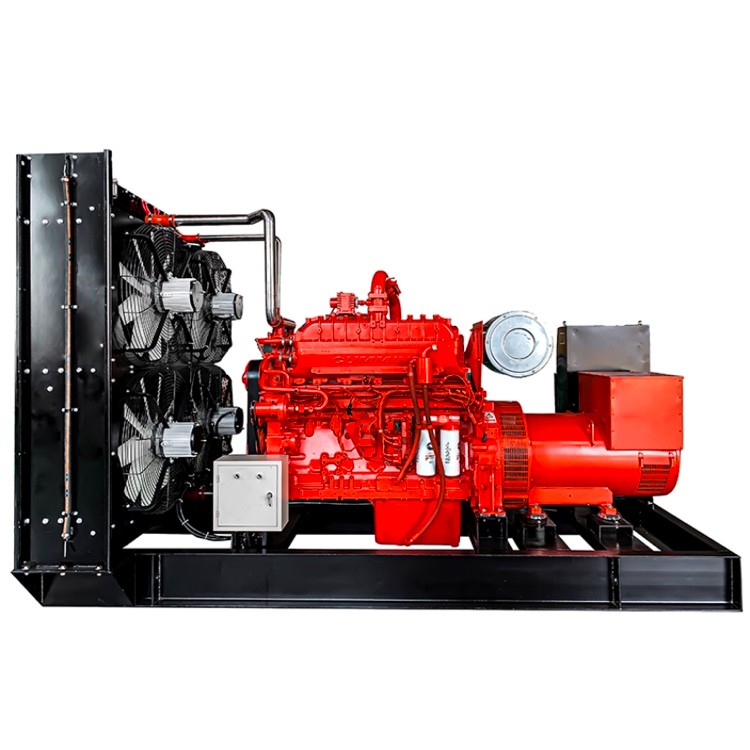

300kW Gas Genset Powered By Cummins

Genset Model: U1GC300-G
Continuous Power: 300kW
Frequency: 50Hz
Speed: 1500RPM
Voltage: 400/230V
Fuel Gas: Natural Gas

INQUIRY Whatsapp

Product Details

Product Tags

Genset Working Condition:

Acceptable Working Conditions:

Ambient temperature: -10℃~+40℃

Relative humidity: <90% (20℃）

Altitude: ≤500m

Applied Gas: Natural gas

Acceptable Fuel Gas Pressure: 7~30kPa, CH₄ Content ≥85%

Gas doesn't include free water or free materials (the size of impurities should be less than 5μm.)

Genset Specification:

Gas Generator Set Data
Genset Model	U1GC300-G
Continuous Power	300kW/375kVA
Output Type	3 Phases 4 Wires
Voltage Output	400/230V
Power Factor Cosfi	0.8 lagging
Frequency (Hz)	50
Rated Speed (RPM)	1500
Gas Genset Electrical Efficiency	37.5%

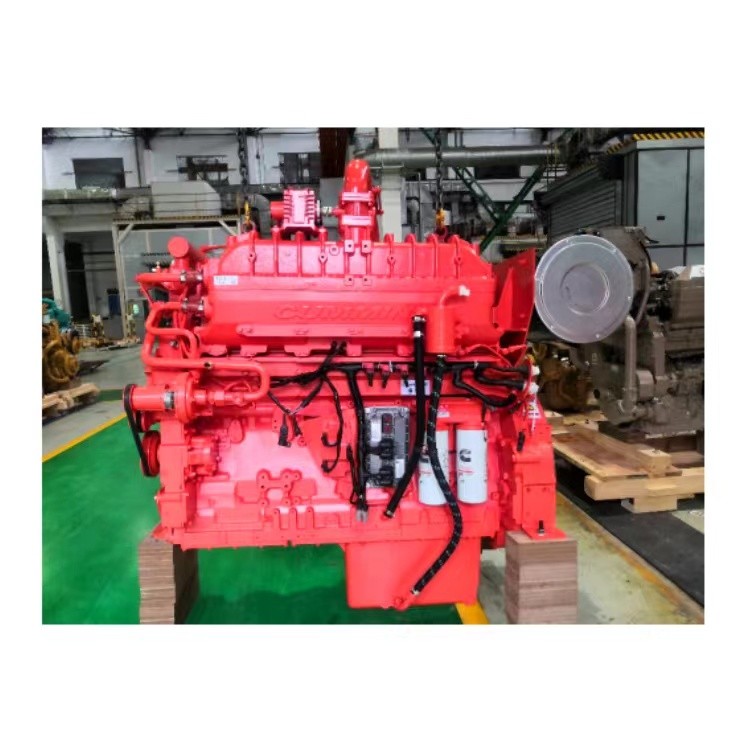

Gas Engine Model	Cummins K19N-G1
Alternator Model	Leroy Somer LSA47.3S4
Gas Consumption at Full Load	0.266m³/kWh
Lubricant Oil Consumption	<0.2g/kWh
Voltage Stabilized Regulation	≤±1.5%
Voltage Instantaneous Regulation	≤±20%
Voltage Recovery Time (s)	≤1
Voltage Fluctuation Ratio	≤1%
Voltage Wave Aberration Ratio	≤5%
Frequency Stabilized Regulation	≤1%(adjustable)
Frequency Instantaneous Regulation	-10%~12%
Frequency Fluctuation Ratio	≤1%
Net Weight, Open Type	3950kg
Dimension, Open Type	381016502220mm

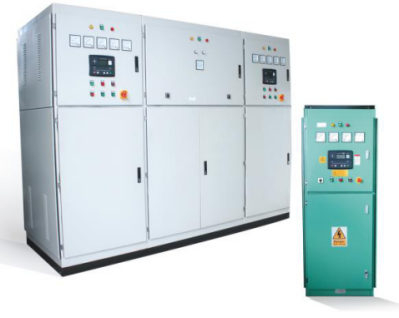

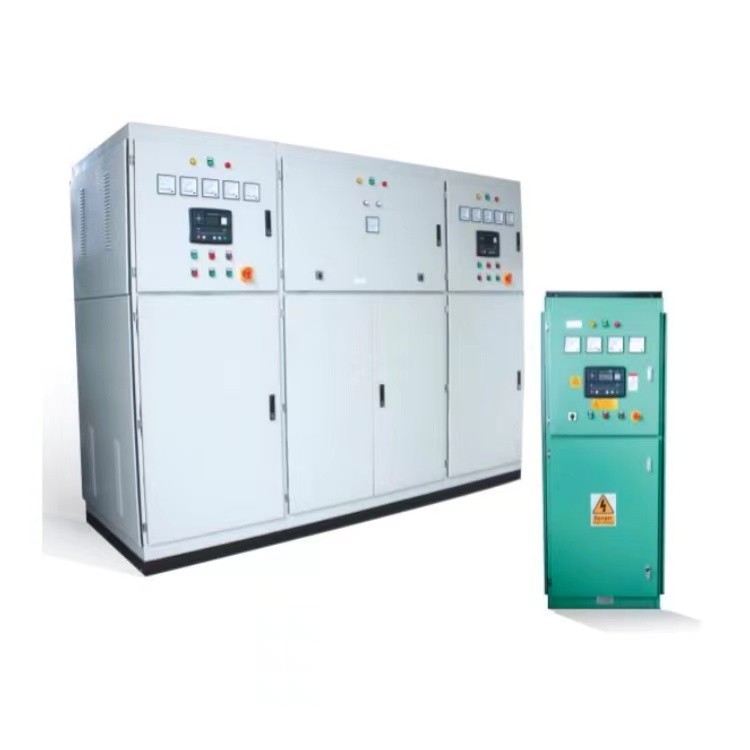

Synchronization Panel (optional)
	Model	U1S1000
	Capacity	2000A
	Air Circuit Breaker Brand	CHINT
	Controller	DSE8620 MKII/ComAp IG500G2
Features: 1. Automatically synchronize gas gensets 2. Automatically unload the genset 3. Programmed start and stop genset 4. Genset monitoring and protecting 5. Synchronize gensets with national grid(mains)/Multiple gensets paralleling.

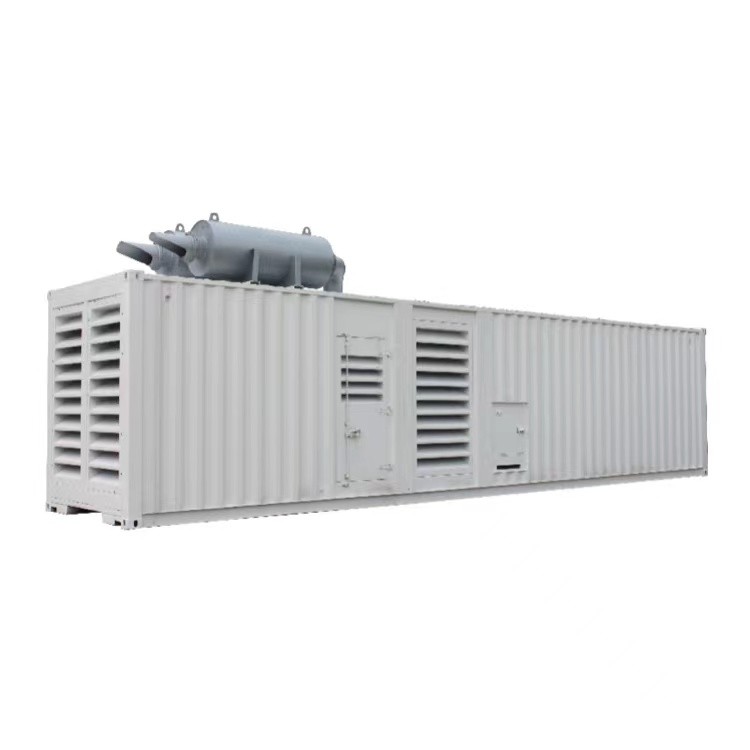

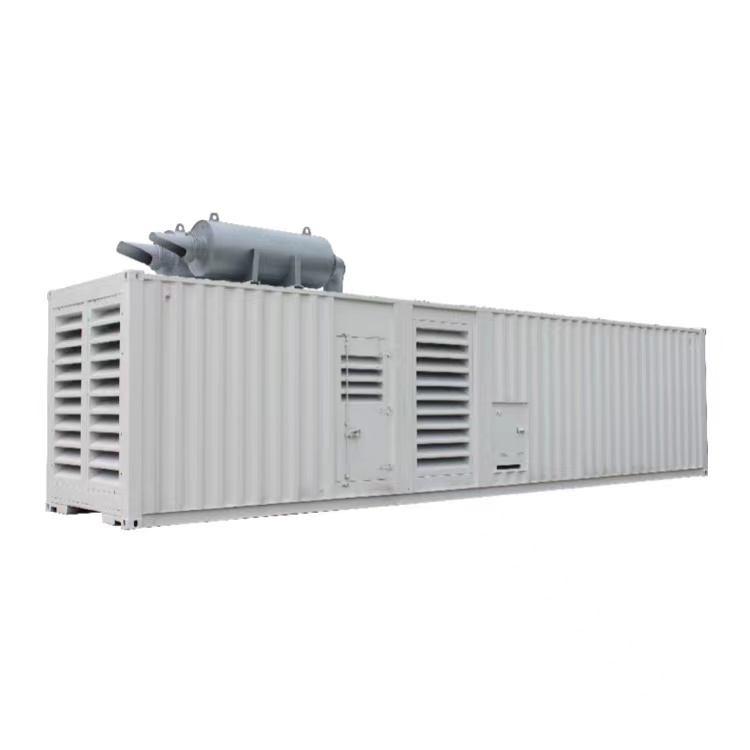

Cotainerized Canopy (optional)


Features:

1. ISO 20ft high container with CCS certificate.

2. Top-quality of paint to guarantee good protection under hard

weather.

3. Weather-proof, dust-proof, sound-proof, suitable for rigorous

environment.

4. All canopy parts are designed with modular principles and

canopy materials use strong steel board.

5. All metal canopy parts are painted by electrostatic polyester

powder paint.

6. Efficient air intake and exhaust system to ensure stable output.

7. Scientific design and advanced techniques to reduce noise level

to 75-85db(A), materials and its covers further ensure soundabsorbing efficiency and protection function.

8. Locks of canopy design are more convenient for the operation

and maintenance also ensure the safety of gen-set more.

9. Lifting-eye and forklift design are easy for transportation.

10. Emergency stop push button outside of canopy.

11. Well-formed and compact design, the big built-in muffler

makes the noise lower.

Automatic Oil Filling, KENCO brand. (optional)

Features:

Automatically add lubricant oil for gas genset

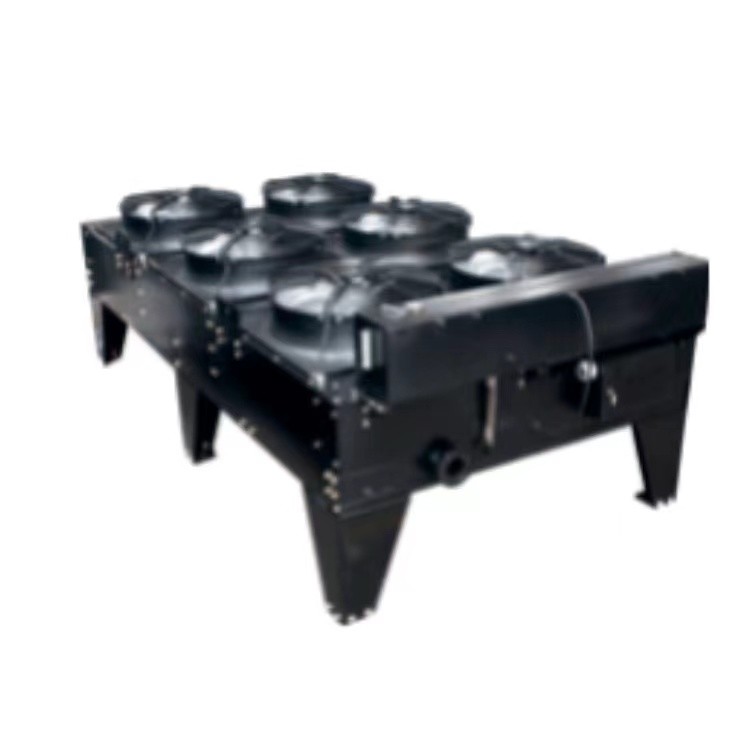

Horizontal remote radiator. (optional)

Standby remote radiator will run to cool engine when:

1. The heat recovery system is not working due to

maintenance/repair.

2. Customer does not need hot water, but need gas genset to

run to produce electricity only.

3. Engine coolant temperature is too high.

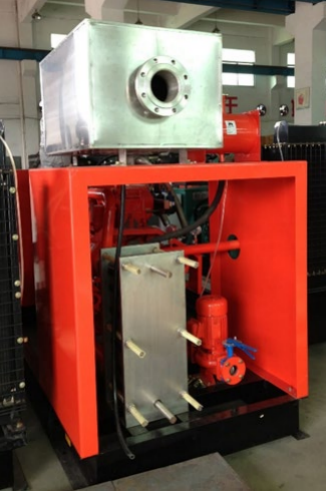

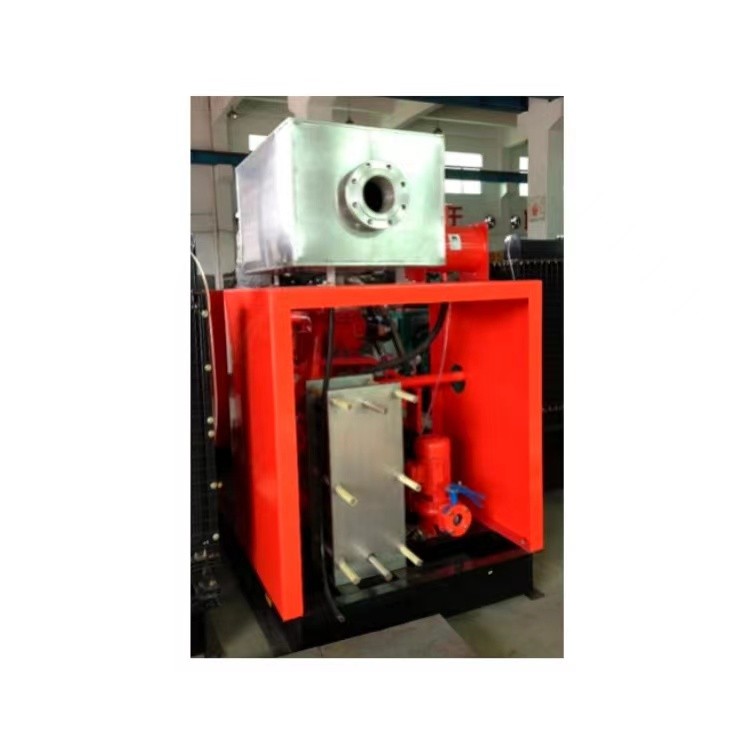

	Heat recovery system. (optional)
	Material	Stainless Steel
	Heat exchangers	Jacket water plate heat exchanger and exhaust heat exchanger
	Electrical efficiency	38% at 1000kWel
	Thermal efficiency	45%
	Thermal power	1184kWth
	Temperature in water supply system	60℃
	Temperature of water outlet	85℃
	Hot water consumption	11.3L/s
	Features: Increase the total efficiency. Hot water can be for the life and industrial use

Scope of Supply:

1. Brand new Cummins gas engine.

2. Brand new brushless Leroy Somer alternator

3. Genset automatic controller, UK Deepsea DSE8620 MKII/ComAP Controller

4. 40ft high containerized soundproof canopy

5. Synchronization panel with CHINT motorized circuit breaker

6. Gas train valves (Germany DUNGS gas regulator, solenoid valve, flame arrestor, ball valve).

7. Automatic oil filling system.

8. Oil heater and coolant heater

9. Remote radiator

10. Accessories list for each engine:

Items	Quantity
Silencers	2
Elbows	1 set
Screws and Flanges	1 set
Asbestos Pad	1 set
Anti-rust Liquid	1
Genset starting free maintenance batteries, Battery charger, Battery cables	1 set
Standard Toolbox	1
Documents list:
Genset Operation Manual, Genset Maintenance Manual	1 set
Engine Part Book	1
Alternator Manuals, Maintenance Manuals, Parts Book	1 set
Genset Installation Drawings Electrical System Drawings	1 set
ComAp IG-NT Controller Instruction	1
Engine Certificate Alternator Certificate, Genset Certificate	1
Genset Testing Reports	1
