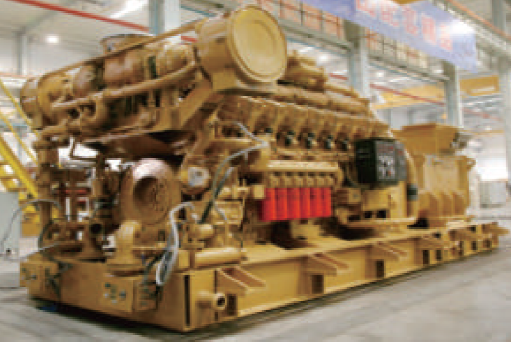

1200kW 1000RPM CNPC Jichai Gas Generator Set

Bore*Stroke(mm): 200*255
Displacement: 96.1L
Aspiration: Turbocharger
Control: Electronic Speed Governing
Rated Speed: 1000RPM
Rated Power(prime): 1200kW

INQUIRY Whatsapp

Product Details

Product Tags

U1GJ1200-G Gas Generating Set Features
Voltage Regulation	Features accurate voltage regulation for stable power output.
Dynamic Performance	Excellent dynamic performance with minimal voltage waveform distortion.
Efficiency	High efficiency, ensuring optimal energy usage.
Structure	Compact design that saves space and is easy to install.
Maintenance	Easy to maintain, reducing downtime and maintenance costs.
Speed	Low-speed operation for extended engine life and reduced wear.
Reliability	Known for reliable performance and long operational lifespan.
Cost-Effective	Designed to offer excellent value for money, making it a cost-effective solution.
Versatility	Can either transfer electricity directly to load or be combined with two or more sets in a power station.
Applications	Suitable for use as both normal and stand-by power in various industries such as oil fields, factories, and resource development bases.
Engine Design	-Designed by AVL, Austria -Intellectual Property belong to Jichai - Triaxiality Finite Element Analysis - Longer Stroke, More displacement - Low Speed (1000RPM), More Reliable - Advanced World Standard Performance
Alternator	- Brushless Excitation - AVR - Better Insulation and Protection
Safety	- Low Oil Pressure Auto Stop Protection - Over Speed Auto Stop Protection - Explosion Proof - High Coolant Temerature Alarm - Low Coolant Level Alarm - High Oil Temperature Alarm - Emergency Stop Device - Complete Electrical Protection
Testing	- Strict Inspection and Factory Test for Each Gen-set - Start Performance Test - Load Test - Synchronization Test - Safety System Test
The Whole Equipment Supply	- Standard Scope of Supply - Optional Equipment List - Repairing Tools - Spare Parts - Meet the Requirement for All Accessories of Project
Technical Support & Services	- Free Technical Support and Training Service - 24/7 Technical Service Tel Number - Rapid Spare Parts Supply - After Sales Service for Generator Set Lifetime

Property Parameters:
Model	U1GJ1200-G
Engine Type	Jichai L12V200ZLT-2
Alternator Type	1FC Series (SIEMENS Technology)
Rated Power	1200kW
Rated Speed	1000RPM
Rated Frequency	50Hz
Rated Voltage	6.3kV
Rated Power Factor	0.8
Electrical Efficiency	≥38.7%
Cooling Method	Inter-cooling, with Horizontal Radiator
Emergency Genset Function	Automatic Device
Control Module	Deepsea DSE8610
Weight	20,600kg
Dimension	750023002800mm

*Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, Atmospheric pressure at 100kPa and Relative humidity at 30%). Site rating and fuel consumption should amend according to relative standard.

Main Specification of Engine:
Model of Engine	Jichai L12V200ZLT-2
Rated Power(kW)	1200
Rated Speed(r/min)	1000
No. and Layout of cylinders	12-cylinder, 60°Vee
Type	Four Strokes, V Type, Turbocharged Inter-cooling, Spark Plug Ignition
Bore(mm)	200
Stroke(mm)	255
Total Displacement(L)	96.1
Specific Oil Consumption(g/kW.h)	≤0.6
Idle Speed(r/min)	700
Gas Pressure(kPa)	100~400
Heat Rate(kJ/kW.h)	≤8850
Exhaust Temperature(Before Turbocharger. ℃）	≤650
Water Outlet Temperature(℃)	≤85
Water Inlet Temperature of Inter-cooler(℃)	≤45
Lube Temperature(℃)	≤90

Main Specification of Alternator
Model of Alternator	1FC series (SIEMENS technology)
Rated Power(kW)	1000
Rated Power Factor(cosΦ)	0.8
Rated Voltage(V)	6.3kV
Rated Speed	1000RPM
Rated Frequency(Hz)	50
Exciting Method	Brushless
Wiring Method	3 phase 4 wire, Y type connection
Insulation Class	F
Class of Protection	IP23
Cooling	A fan at the drive end draws the cooling air
Bearing Structure	Duplex bearing
Direction of Rotation	Clockwise (facing to generator drive end)
