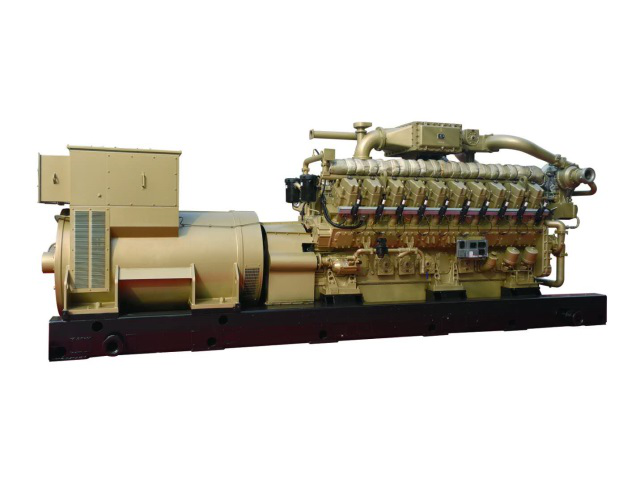

2000kW 1000RPM CNPC Jichai Gas Generator Set

Bore*Stroke(mm): 190*255
Displacement: 144.6L
Aspiration: Turbocharged-After cooled
Control: Electronic Speed Governing
Rated Speed: 1000RPM
Rated Power(prime): 2000kW

INQUIRY Whatsapp

Product Details

Product Tags

U1GJ2000-G Gas Generating Set Features
Development	L20V190ZLT-2 was developed by Jichai to meet market demands, addressing the limitations of the first-generation gas engines.
Engine Optimization	The engine has been optimized to improve power performance, fuel economy, and reliability.
Outer Mixing Mode	Uses outer mixing mode to enhance engine efficiency and combustion.
Increased Compression and Boost Ratios	Improves performance by increasing both compression ratio and boost ratio.
Enhanced Swirl Ratio	Features an enhanced swirl ratio to improve combustion quality.
Lean-Burn Technology	Achieves lean-burn operation by controlling the air-fuel ratio, improving fuel economy and reducing emissions.
High-Energy Ignition	Equipped with high-energy ignition for reliable and efficient starting and operation.
Power Generation	Suitable for power generation, either by a single engine or by combining multiple engines in a power station setup.
Versatile Applications	Can also be used as a power source for compressors, oil transfer pumps, water injection pumps, and more.
Engine Design	-Designed by AVL, Austria -Intellectual Property belong to Jichai - Triaxiality Finite Element Analysis - Longer Stroke, More displacement - Low Speed (1000RPM), More Reliable - Advanced World Standard Performance
Alternator	- Brushless Excitation - AVR - Better Insulation and Protection
Safety	- Low Oil Pressure Auto Stop Protection - Over Speed Auto Stop Protection - Explosion Proof - High Coolant Temerature Alarm - Low Coolant Level Alarm - High Oil Temperature Alarm - Emergency Stop Device - Complete Electrical Protection
Testing	- Strict Inspection and Factory Test for Each Gen-set - Start Performance Test - Load Test - Synchronization Test - Safety System Test
The Whole Equipment Supply	- Standard Scope of Supply - Optional Equipment List - Repairing Tools - Spare Parts - Meet the Requirement for All Accessories of Project
Easy Installation and Remove	- All Equipment on Common Skid Three-Point Support - Simple Installation Work - High Strength Skid, for Hoisting and Removing
Technical Support & Services	- Free Technical Support and Training Service - 24/7 Technical Service Tel Number - Rapid Spare Parts Supply - After Sales Service for Generator Set Lifetime

Property Parameters:
Model	U1GJ2000-G
Engine Type	Jichai L20V200ZLT-2
Alternator Type	1FC Series (SIEMENS Technology)
Rated Power	2000kW
Rated Speed	1000RPM
Rated Frequency	50Hz
Rated Voltage	6.3kV
Rated Power Factor	0.8
Electrical Efficiency	≥40%
Voltage Regulation	AVR
Turbocharger Brand	ABB
Ignition System Brand	Motortech
Control System Brand	Woodward
Weight	28,000kg
Dimension	715020402786mm

*Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, Atmospheric pressure at 100kPa and Relative humidity at 30%). Site rating and fuel consumption should amend according to relative standard.

Main Specification of Engine:
Model of Engine	Jichai L20V200ZLT-2
Rated Power(kW)	2200
Rated Speed(r/min)	1000
No. and Layout of cylinders	20-cylinder, 60°Vee
Type	Four Strokes, Water Cooled, Direct Injection, Air-fuel Ratio Control, Spark plug ignition, Out mixing, Electrical Control, Mixed after Compressor, Turbocharged and Aftercooled
Bore(mm)	190
Stroke(mm)	255
Total Displacement(L)	144.6
Specific Oil Consumption(g/kW.h)	≤0.3
Governor	Electronic Governor
Heat Rate(kJ/kW.h)	≤8700
Exhaust Temperature(Before Turbocharger. ℃）	≤700
Starting Mode	24V DC electric starting motor
Water Outlet Temperature(℃)	≤90
Direction of Rotation	Counter-clockwise(facing to flywheel)
Lubrication Method	Pressure and splash lubrication
Hot Water Outlet Temperature(℃)	≤90
Mid-cooler Inlet Water Temperature(℃)	≤45
Oil Temperature(℃)	≤90
Stable Regulating Rate	0~5% adjustable
Cooling Method	Horizontal Radiator

Main Specification of Alternator
Model of Alternator	1FC series (SIEMENS technology)
Rated Power(kW)	2000
Rated Power Factor(cosΦ)	0.8
Rated Voltage(V)	6300V
Coupling	Elastic
Voltage Regulator	3 Phase Sensing with Volts/Hz
Voltage Regulation	Less than +/- 0.5% in steady state and less than +/- 0.5% with 3% speed change
Rated Speed	1000RPM
Rated Frequency(Hz)	50
Exciting Method	Brushless
Wiring Method	3 phase 4 wire, Y type connection
Insulation Class	F
Class of Protection	IP23
Running Mode	Continuous
Direction of Rotation	Anticlockwise(Facing to input end
