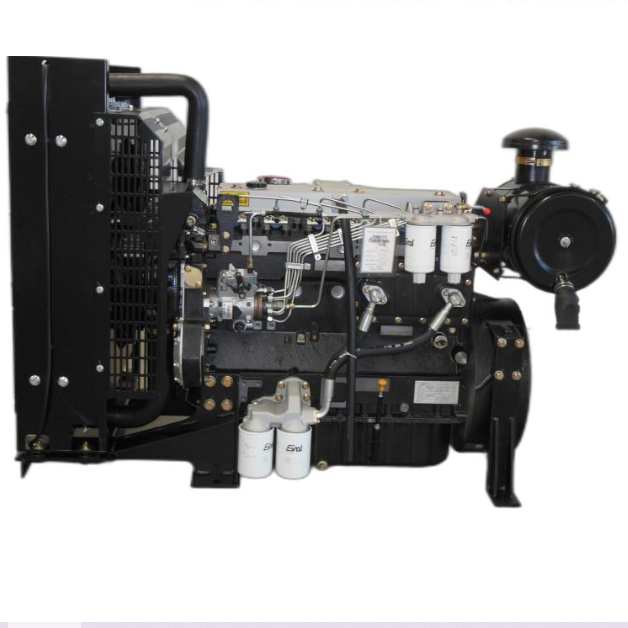

Diesel Engine With Rotary Pump For Gensets

Cyl.No.:4-Cyl.,6-Cyl.
Displacement(L):3.99,3.98
Engine Prime Power:
(kW/1500rpm):40-92
(kW/1800rpm):44-108
Engine Standby Power:
(kW/1500rpm):44-102
(kW/1800rpm):48-119
Generator  Prime Power:
(kW/1500rpm):35-83
(kW/1800rpm):39-97
Cold Start With Preheater(Optional):-25℃

INQUIRY Whatsapp

Product Details

Product Tags

Engine Model		1004G	1004TG	1006TG1A	1006TG2A
Engine Model		E4α 100 Series		E6α 100 Series
Cyl.No.		4-Cyl.	4-Cyl.	6-Cyl.	6-Cyl.
Induction System		NA	T	T	T
Displacement(L)		3.99	3.99	5.98	5.98
Bore×Stroke(mm)		100×127	100×127	100×127	100×127
Engine Prime Power	kW/1500rpm	40	66	84	92
Engine Prime Power	kW/1800rpm	44	76	98	108
Engine Standby Power	kW/1500rpm	44	72	93	102
Engine Standby Power	kW/1800rpm	48	83	107	119

Governor Type		Mechanical
Noise dB(a)		≤96	≤96	≤96	≤96
Specific Fule Consumption (g/kW.h)		210	205	205	205
Cold Start	Without Preheater	-10℃	-10℃	-10℃	-10℃
Cold Start	With Preheater (Optional)	-25℃	-25℃	-25℃	-25℃
Electrical System		12V	12V	12V	12V
Engine Net Weight(KG)		495	515	660	660
Engine Overall Size(mm)		1275735938		15467591106
Flywheel/Flywheel Housing		SAE3/11.5"
Generator Prime Power	kW/1500rpm	35	58	76	83
Generator Prime Power	kW/1800rpm	39	67	88	97
