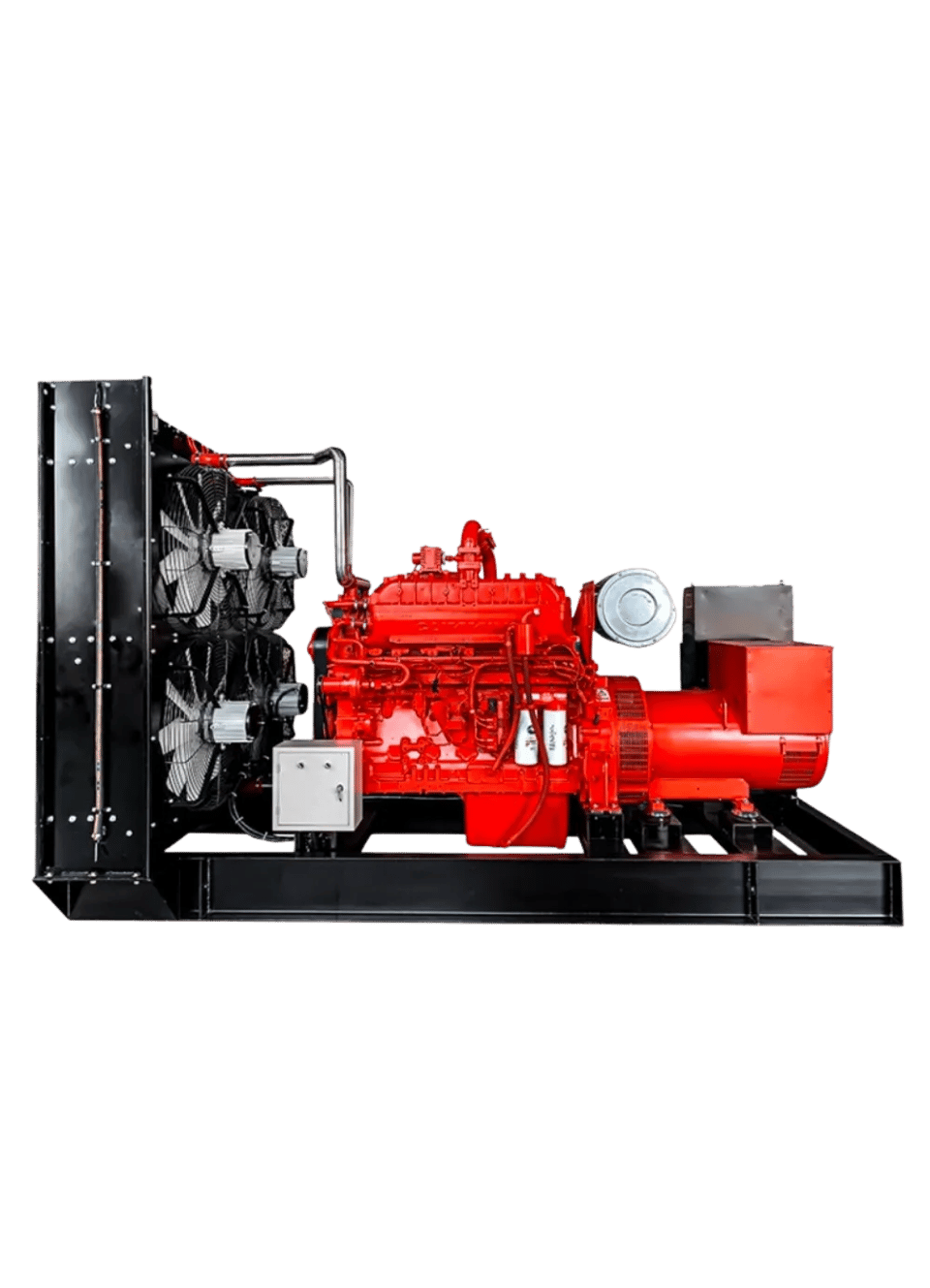

300kW Gas Generator Set Powered By Cummins
Genset Model: U1GC300-G
Continuous Power: 300kW
Frequency: 50Hz
Speed: 1500RPM
Voltage: 400/230V
Fuel Gas: Natural Gas
Main Features
Learn more about America's preeminent trusted computing innovator.
20+ Years Manufacturing
Specializing in gas & diesel generator set manufacturing.
Certified Industrial Factory
ISO 9001, ISO 8528, ISO 12100, IEC60204, CE and SGS certified production system.
Wide Power Coverage
Generator sets covering from 18kw to 2500 kW+, suitable for standby and prime power.
Global Brand Compatibility
Compatible with Cummins, Perkins, Stamford, Leroy Somer, INNIO Jenbacher and MTU famous brands .
100% Factory Testing
Each genset undergoes full-load performance and safety testing prior to shipment.
Global Project Support
Supporting overseas projects with pre-sales engineering and after-sales technical support.
Specifications
| Gas Generator Set Working Condition | |
| Ambient temperature | -10℃~+40℃ |
| Relative humidity | <90% (20℃） |
| Altitude | ≤500m |
| Applied Gas | Natural gas |
| Acceptable Fuel Gas Pressure | 7~30kPa, CH₄ Content ≥85% |
| Gas doesn't include free water or free materials (the size of impurities should be less than 5μm. | |
| Gas Generator Set Data | |
| Genset Model | U1GC300-G |
| Continuous Power | 300kW/375kVA |
| Output Type | 3 Phases 4 Wires |
| Voltage Output | 400/230V |
| Power Factor | 0.8 lagging |
| Frequency (Hz) | 50 |
| Rated Speed (RPM) | 1500 |
| Gas Genset Electrical Efficiency | 37.5% |
| Gas Engine Model | Cummins K19N-G1 |
| Alternator Model | Leroy Somer LSA47.3S4 |
| Gas Consumption at Full Load | 0.266m3/kWh |
| Lubricant Oil Consumption | <0.2g/kWh |
| Voltage Stabilized Regulation | ≤±1.5% |
| Voltage Instantaneous Regulation | ≤±20% |
| Voltage Recovery Time (s) | ≤1 |
| Voltage Fluctuation Ratio | ≤1% |
| Voltage Wave Aberration Ratio | ≤5% |
| Frequency Stabilized Regulation | ≤1%(adjustable) |
| Frequency Instantaneous Regulation | -10%~12% |
| Frequency Fluctuation Ratio | ≤1% |
| Net Weight, Open Type | 3950kg |
| Dimension, Open Type | 3810*1650*2220mm |

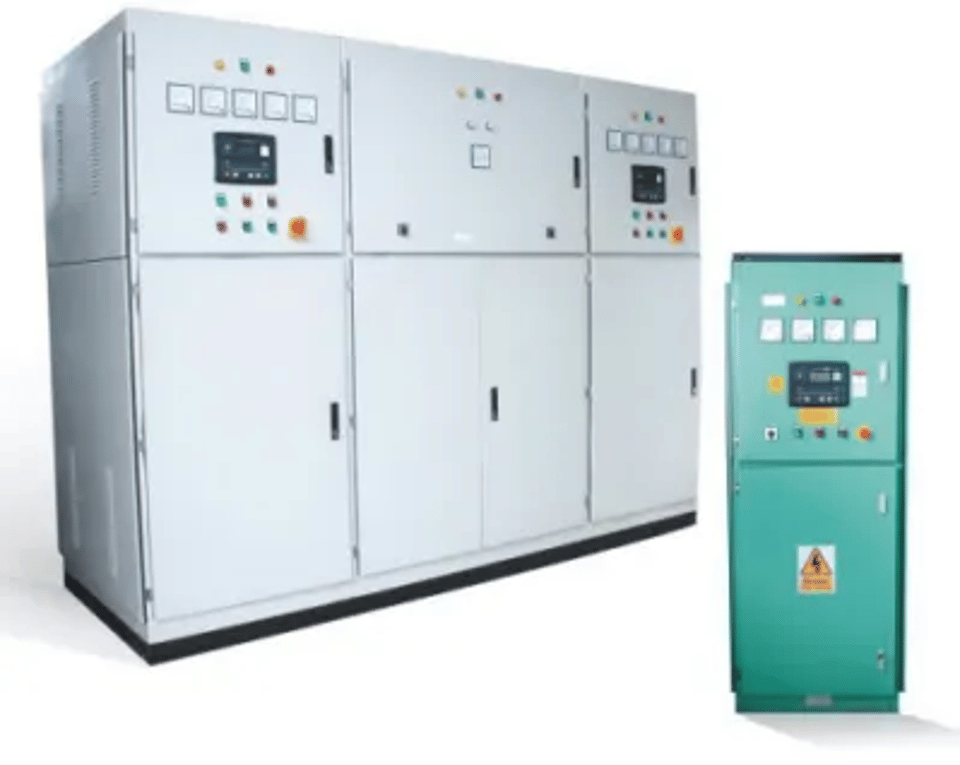

Synchronization Panel (Optional)
| Model | U1S300 |
| Capacity | 630A |
| Air Circuit Breaker Brand | CHINT |
| Controller | DSE8620MKII / ComAp IG500G2 |
| Features:
| |

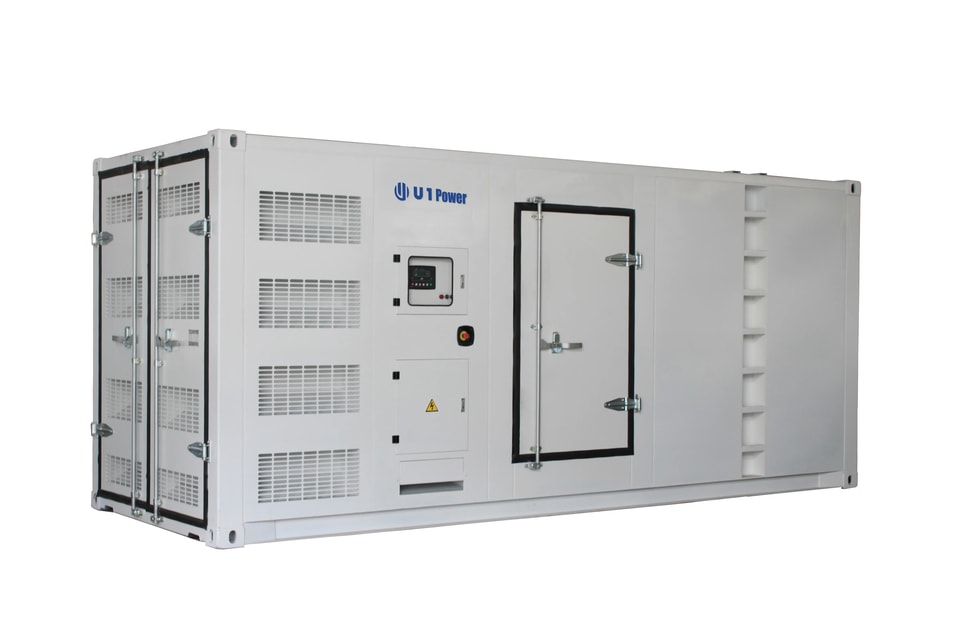

20ft high containerized canopy or compact canopy (Optional)
Features:
- ISO 20ft high container with CCS certificate.
- Top-quality of paint to guarantee good protection under hard weather.
- Weather-proof, dust-proof, sound-proof, suitable for rigorous environment.
- All canopy parts are designed with modular principles and canopy materials use strong steel board.
- All metal canopy parts are painted by electrostatic polyester powder paint.
- Efficient air intake and exhaust system to ensure stable output.
- Scientific design and advanced techniques to reduce noise level to 75-85db(A).
- Locks of canopy design are more convenient for the operation and maintenance.
- Lifting-eye and forklift design are easy for transportation.
- Emergency stop push button outside of canopy.
- Well-formed and compact design, the big built-in muffler makes the noise lower.

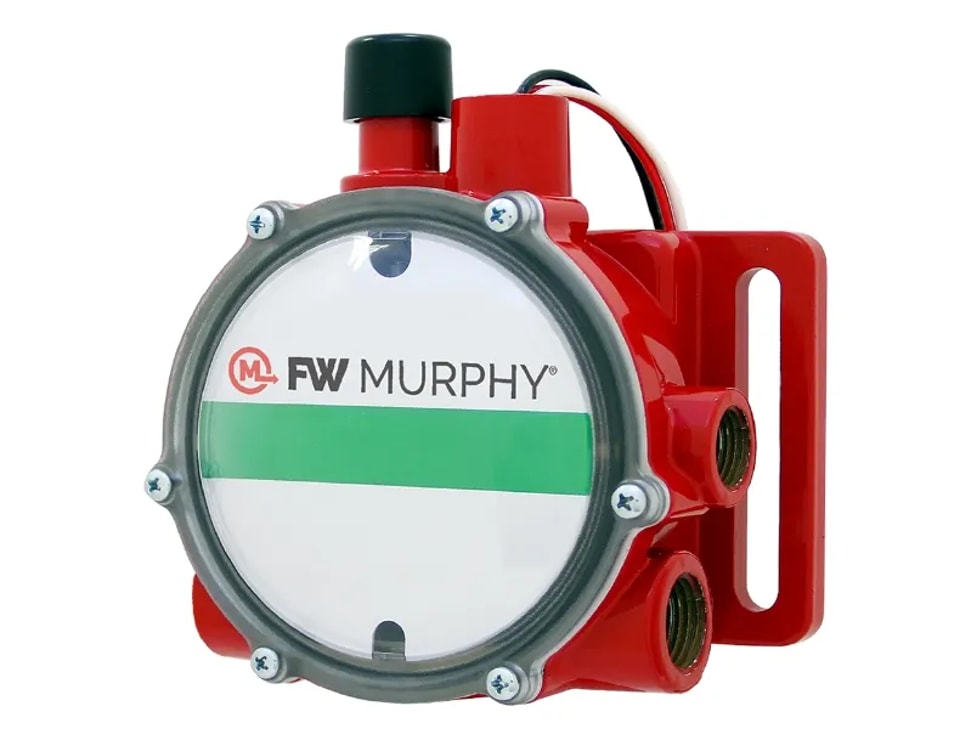

Automatic Oil Filling, FW Murphy brand. (Optional)
Features:
- Automatically add lubricant oil for gas generator set
(1).webp)

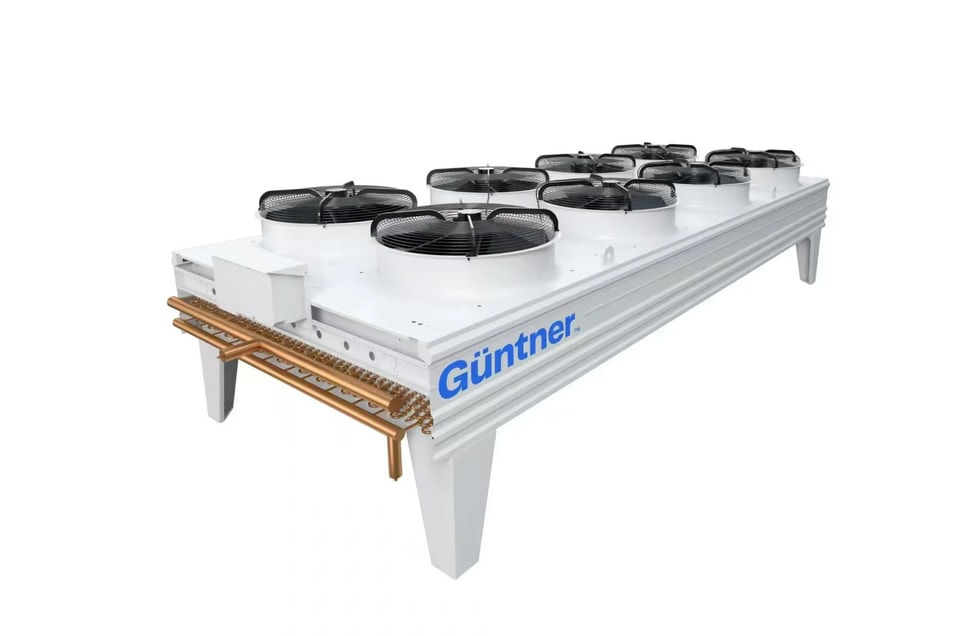

Horizontal remote radiator. (Optional)
Standby remote radiator will run to cool engine when:
- The heat recovery system is not working due to maintenance/repair.
- Customer does not need hot water, but need gas generator set to run to produce electricity only.
- Engine coolant temperature is too high.
.webp)

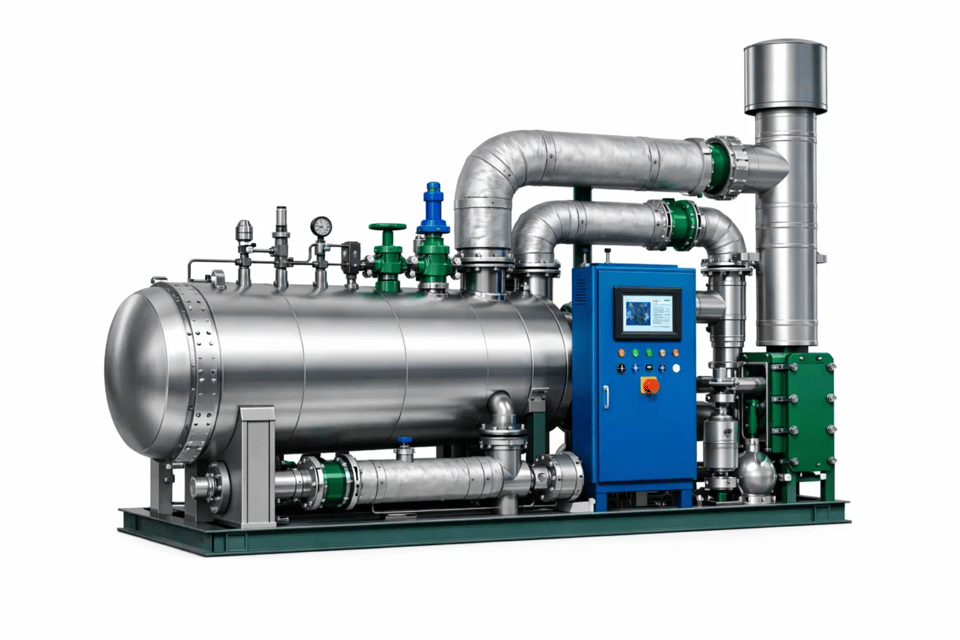

Heat recovery system. (Optional)
| Material | Stainless Steel |
| Heat exchangers | Jacket water plate heat exchanger and exhaust heat exchanger |
| Electrical efficiency | 36% at250kWe |
| Thermal efficiency | 45% |
| Thermal power | 947kWth |
| Temperature in water supply system | 60℃ |
| Temperature of water outlet | 80℃ |
| Hot water consumption | 3.72L/s |
| Features:
| |
.webp?x-oss-process=image/resize,w_356/quality,q_100)
Scope of Supply
- 1. Brand new Cummins gas engine.
- 2. Brand new brushless Leroy Somer alternator.
- 3. Genset automatic controller, UK Deepsea DSE8620 MKII/ComAP Controller.
- 4. 20ft/ 40ft high containerized soundproof canopy.
- 5. Synchronization panel with CHINT motorized circuit breaker.
- 6. Gas train valves (Germany DUNGS gas regulator, solenoid valve, flame arrestor, ball valve).
- 7. Automatic oil filling system.
- 8. Oil heater and coolant heater.
- 9. Remote radiator.
- 10. Accessories list for each engine:
| Items | Quantity |
| Silencers | 2 |
| Elbows | 1 set |
| Screws and Flanges | 1 set |
| Asbestos Pad | 1 set |
| Anti-rust Liquid | 1 |
| Genset starting free maintenance batteries, Battery charger, Battery cables | 1 set |
| Standard Toolbox | 1 |
| Documents list: | |
| Genset Operation Manual, Genset Maintenance Manual | 1 set |
| Engine Part Book | 1 |
| Alternator Manuals, Maintenance Manuals, Parts Book | 1 set |
| Genset Installation Drawings Electrical System Drawings | 1 set |
| ComAp IG-NT Controller Instruction | 1 |
| Engine Certificate Alternator Certificate, Genset Certificate | 1 |
| Genset Testing Reports | 1 |
Related Products

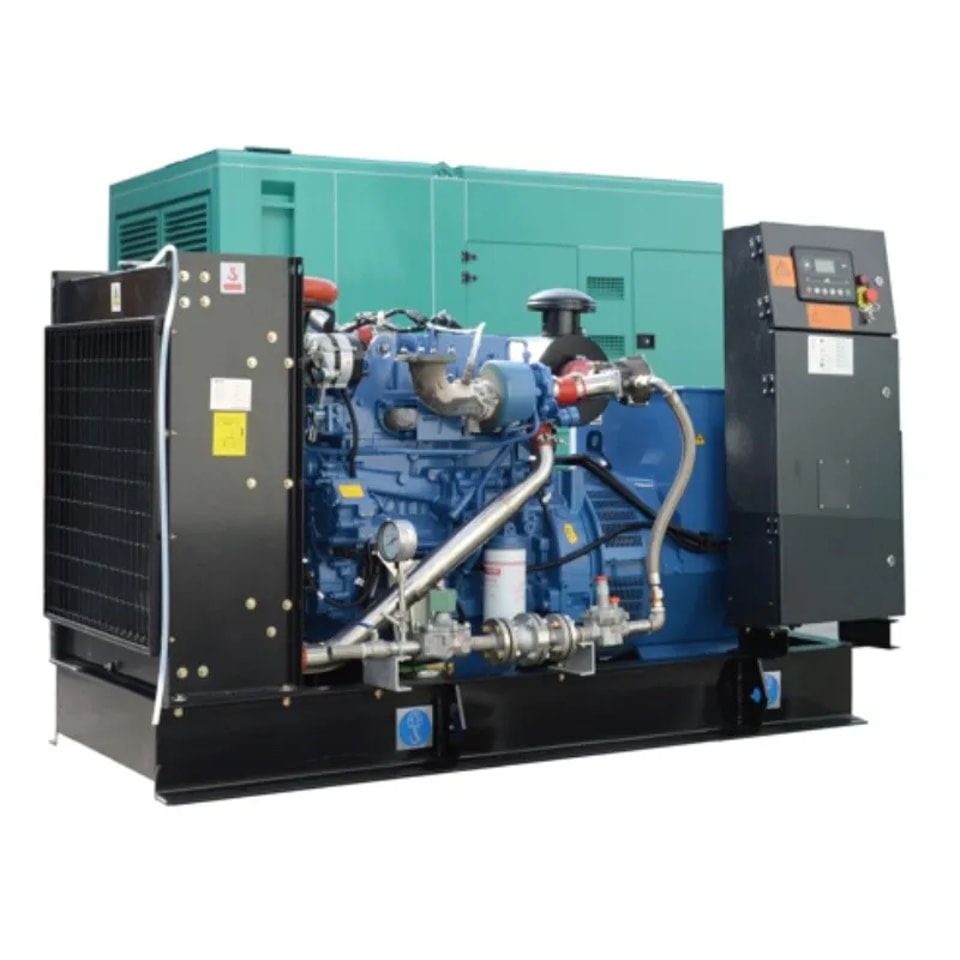

Natural-Gas-Gensets-Powered-By-Yuchai-Gas-Engines.
