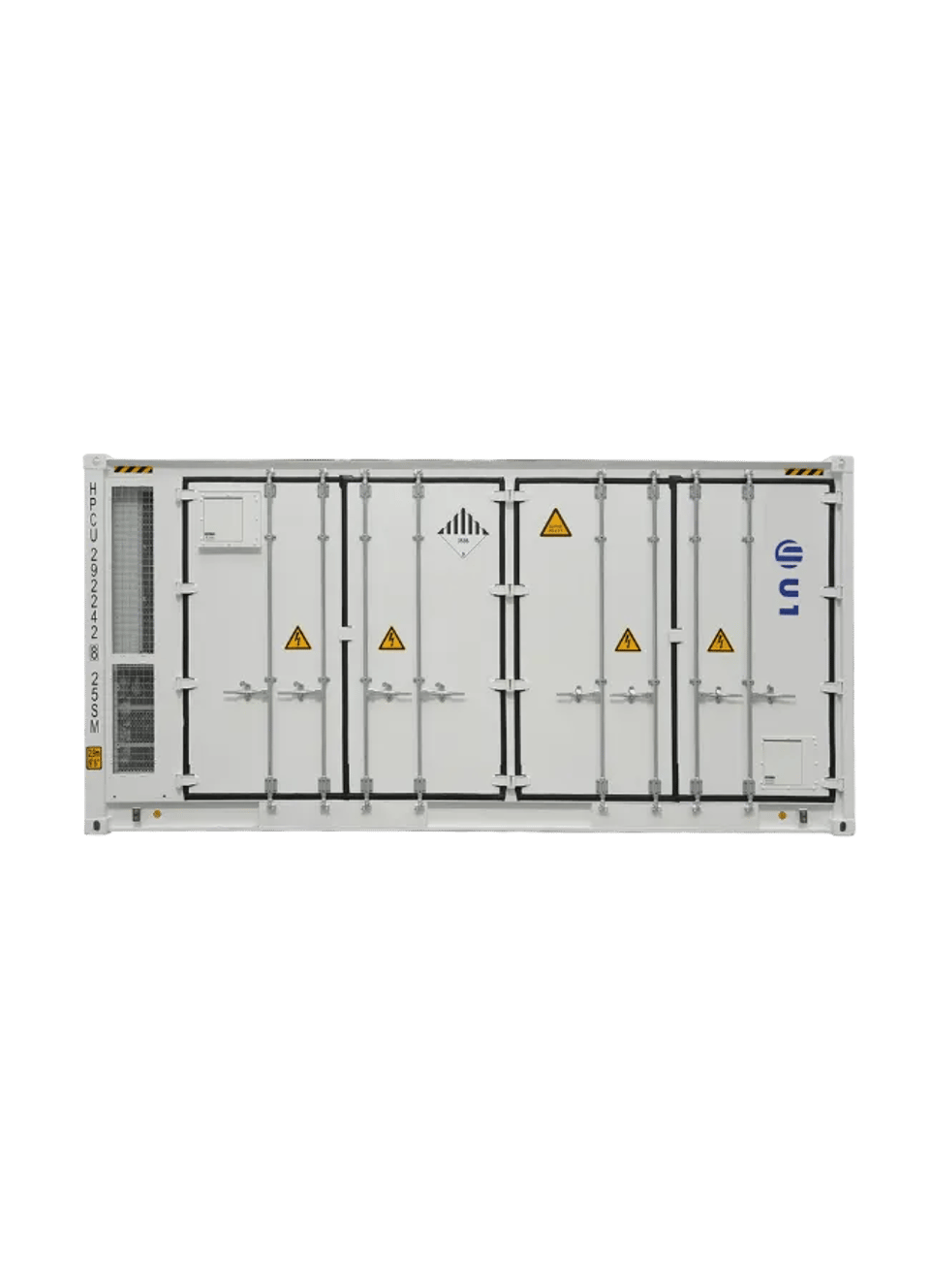

5015kWh Liquid-cooled Battery Cabinet
5015kWh Liquid-cooled Battery Cabinet

5015kWh Liquid-cooled Battery Cabinet

UP-B20FT5015LP

The 20-ft liquid-cooled ESS container integrates PACK, EMS, BMS, HVAC, and fire suppression system (FSS) into a single container. Designed for demanding applications, the 20-ft liquid-cooled ESS container is suitable for power generation, grid, and commercial & industrial (C&l) ESS scenarios that require high power and flexible capacity.

Learn More →

Main Features

Learn more about America's preeminent trusted computing innovator.

Higher Energy Density

The 20-ft liquid-cooled energy storage container offers a maximum capacity of 5.015MWh, delivering higher energy density and reducing overall costs.

Lower Operating Noise

Minimized fan usage significantly reduces operating noise compared to air-cooled solutions.

Better Temperature Control

The liquid cooling system maintains cell temperature differences below 3°C, improving voltage consistency and overall performance.

Lower Self Power Consumption

A variable-frequency compressor adapts to temperature conditions, reducing the system's power consumption.

Longer Service Life

Enhanced cell temperature consistency extends battery life, increases safety, and improves return on investment.

Higher Protection

The container features an IP55-rated enclosure (PACK IP65), up to C5 corrosion protection, and high/low-temperature design for robust environmental resistance.

Specifications

Item
Cell TypeLFP/314 Ah
Pack Configuration104.5kWh/1P104S
System Configuration / Rated DC Voltage5.015MWh/12P416S
Rated DC Voltage1331.2V
DC Voltage Range1164.8 ~ 1498V
Max. Charge / Discharge Rate0.5P
Max. Depth of Discharge100%(25±2℃)
Cycle Life> 8,000 cycles
Fire Suppression SystemAerosol system(pack level and container level), water spray system
Ingress RatingIP55
CoolingLiquid cooling+Forced air cooling
Operating Temperature-25°C~55°C (Derating after 45°C)
Anticorrosion RatingC4 (C5 optional)
Humidity0~95% RH (non-condensing)
Altitude4000m
Dimensions (W*D*H)6,058*2,438*2,896 mm
Weight45t
CertificationIEC62477, IEC61000, IEC62619, IEC63056, UL9540A, UN3536
