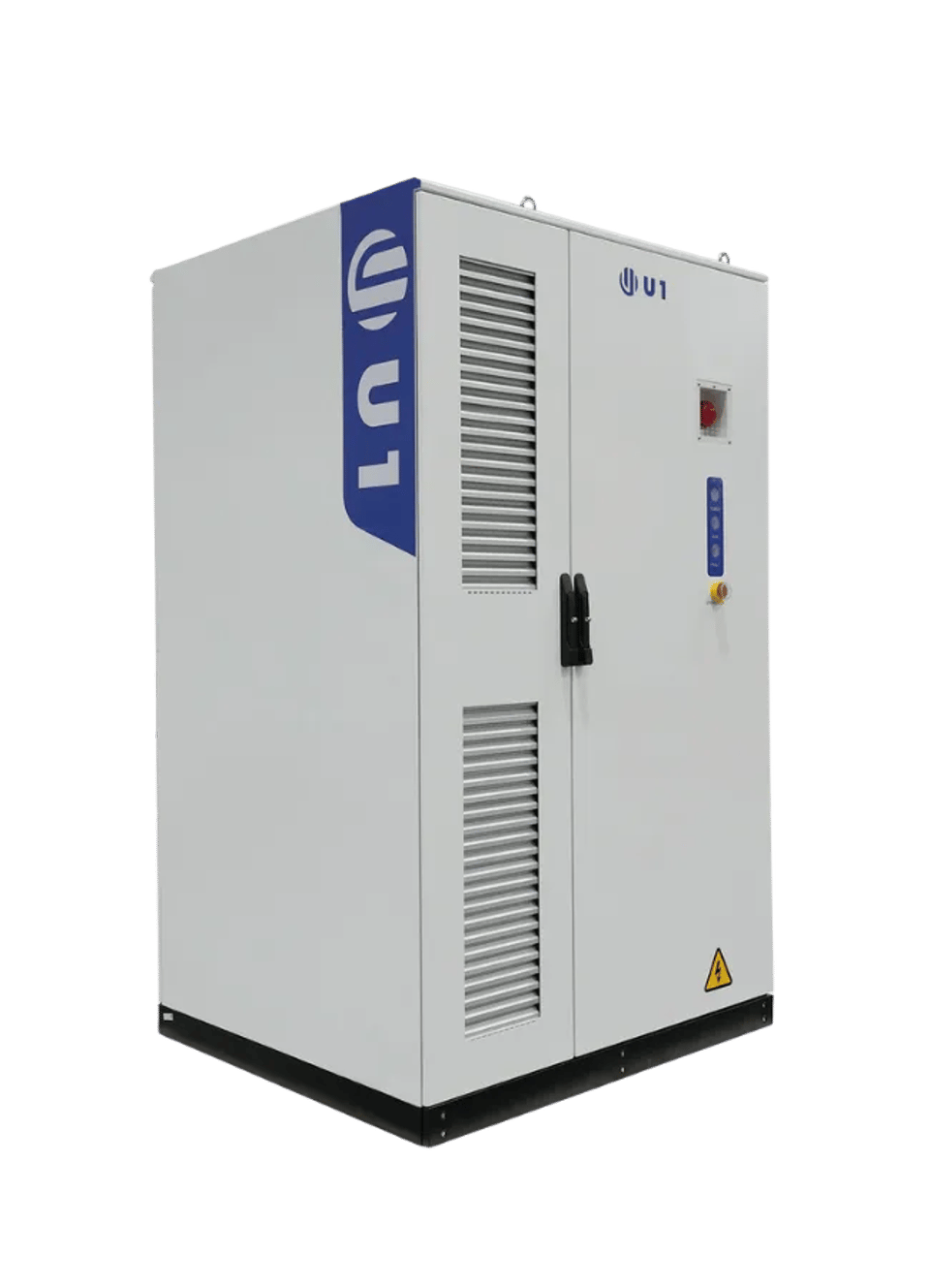

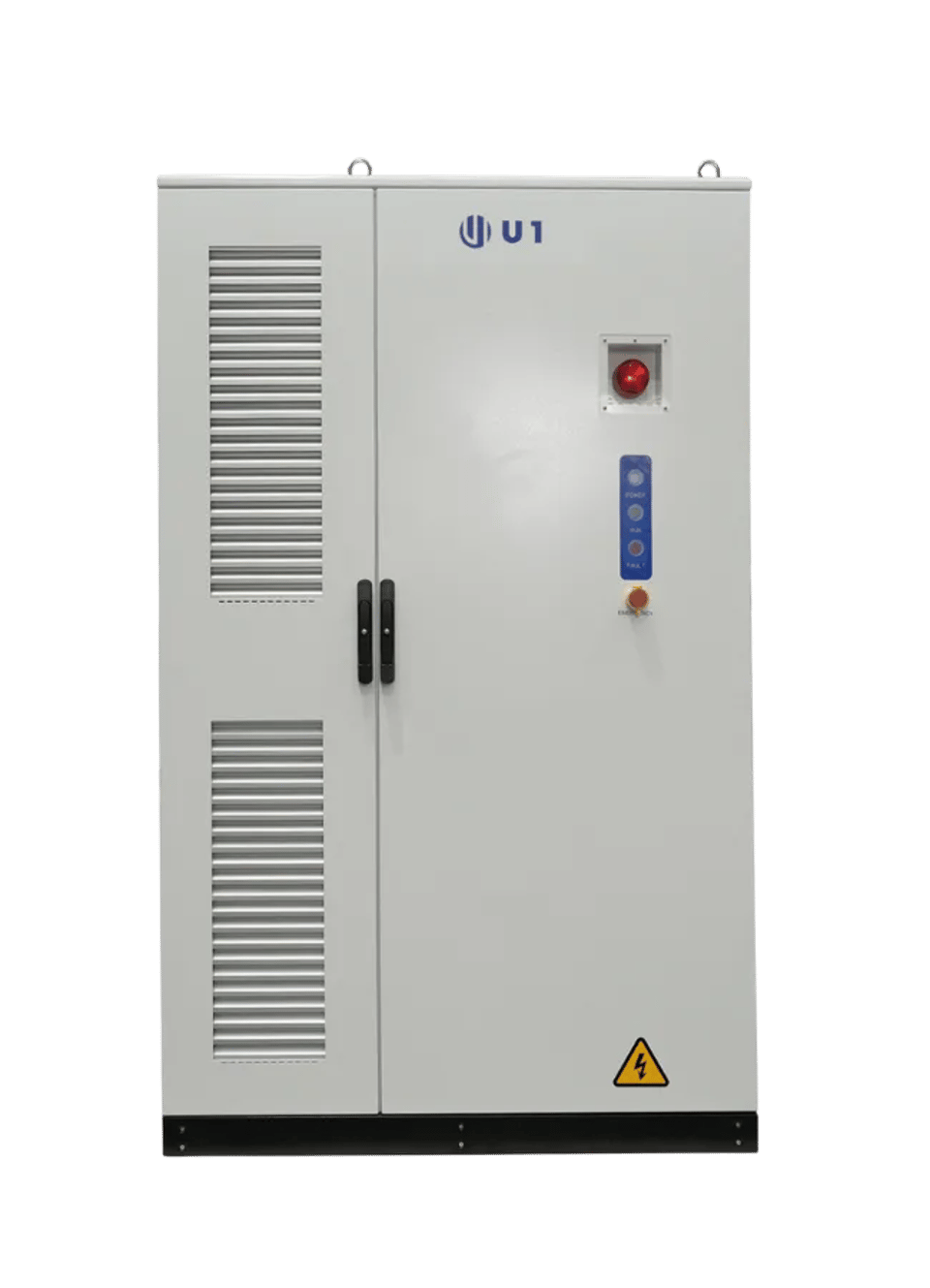

418kWh Liquid-cooled Battery Cabinet
418kWh Liquid-cooled Battery Cabinet

418kWh Liquid-cooled Battery Cabinet

UP-B418LP

The UP-B418LP is a free-standing battery cabinet featuring pack-level liquid cooling and cell-level temperature balancing. It maintains temperature differences within 3°C between cells,enhancing temperature consistency and extending battery life. Its modular design offers flexible parallel configurations and can be paired with a centralized PCS to create a complete ESS solution that delivers higher energy density and significantly improves cost-effectiveness.

Learn More →

Main Features

Learn more about America's preeminent trusted computing innovator.

Compact

1.7㎡ footprint only, easy transportation & fast installation.

High Integration

Multiple units connected in parallel achieve MV/HV connection with PCS-boost containers.

Efficient Cooling

Optimized in-pack liquid-cooled design ensures high cooling efficiency with low energy consumption.

Long Cycle Life

Over 5,500 times cycle life, excellent performance of battery system.

Flexible Expansion

Support seamless cabinets combination and flexible grid access.

Ultimate Safety

In-PACK fire warning and protection with aerosol, prevent heat diffusion and runaway.

Specifications

Item
Cell TypeLFP/314 Ah
Pack Configuration52.248 kWh/1P52S
System Configuration / Rated DC Voltage418 kWh/1P416S
Rated DC Voltage1331.2V
DC Voltage Range1164.8 ~ 1497.6V
Max. Charge / Discharge Rate0.5P
Max. Depth of Discharge100%(25±2℃)
Cycle Life> 8,000 cycles
CommunicationModbus TCP/IP
Fire Suppression SystemAerosol
Ingress RatingIP55
CoolingLiquid cooling
Operating Temperature-25°C~55°C (Derating after 45°C)
Anticorrosion RatingC4 (C5 optional)
Humidity0~95% RH (non-condensing)
Altitude3000m
Dimensions (W*D*H)1,300*1,300*2,400 mm
Weight3,700 kg
CertificationUN38.3, IEC62477-1, IEC61000, IEC62619, IEC63056
