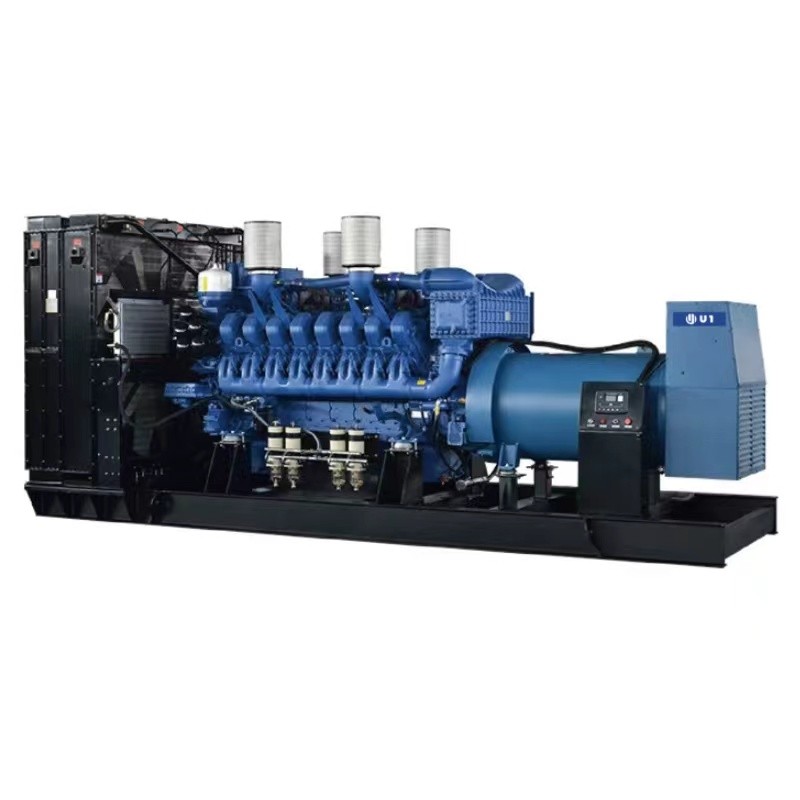

50Hz Diesel Gensets Powered By MTU 4000 Series Engines

Optional Alternators: Leroy Somer, Stamford, Evotec, Engga
Optional Controllers: ComAP, Deepsea, DEIF, SmartGen
Optional Configurations:
ATS Panel, Synchronization Panel
CHP Heat Recovery System
Compact Soundproof Canopy, 20ft/40ft Containerized Canopy

INQUIRY Whatsapp

Product Details

Product Tags

The production factory of MTU-YUCHAI is in Yulin, Guangxi, China. It is a joint venture company established by MTU and Yuchai, producing MTU 4000 series diesel engines to power gensets from 1200kW to 2400kW.

Product Overviews:

Diesel Gensets Powered By MTU

Frequency	Genset Model	Prime Power kva/kw	Standby Power kva/kw	Engine Model	Fuel Consumption L/h	Cylinder	Displacement (L)
50Hz	U1GM1100	1375/1100	N	12V4000G23RF	350	12V	57.2
50Hz	U1GM1452S	1650/1320	1815/1452	12V4000G23F	350	12V	57.2
50Hz	U1GM1600S	1750/1400	2000/1600	12V4000G63F	356	12V	57.2
50Hz	U1GM1800S	2000/1600	2250/1800	16V4000G23F	406	16V	76.3
50Hz	U1GM2000S	2250/1800	2500/2000	16V4000G63F	442	16V	76.3
50Hz	U1GM2200S	2500/2000	2750/2200	20V4000G23F	505	20V	95.4
50Hz	U1GM2400S	2750/2200	3000/2400	20V4000G63F	550	20V	95.4
50Hz	U1GM2600S	3000/2400	3250/2600	20V4000G63F	585	20V	95.4
