300kW Gas Genset Powered By Cummins


Genset Model: U1GC300-G
Continuous Power: 300kW
Frequency: 50Hz
Speed: 1500RPM
Voltage: 400/230V
Fuel Gas: Natural Gas

genset@u1power.com

Tel: +8618566181689

Whatsapp: +8618774841423

300kW Gas Genset Powered By Cummins
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Genset Working Condition
Acceptable Working Conditions:
Ambient temperature: -10℃~+40℃
Relative humidity: <90% (20℃）
Altitude: ≤500m
Applied Gas: Natural gas
Acceptable Fuel Gas Pressure: 7~30kPa, CH₄ Content ≥85%
Gas doesn't include free water or free materials (the size of impurities should be less than 5μm.)

Genset Specification
Gas Generator Set Data
Genset Model U1GC300-G
Continuous Power 300kW/375kVA
Output Type 3 Phases 4 Wires
Voltage Output 400/230V
Power Factor Cosfi 0.8 lagging
Frequency (Hz) 50
Rated Speed (RPM) 1500
Gas Genset Electrical Efficiency 37.5%
Gas Engine Model Cummins K19N-G1
Alternator Model Leroy Somer LSA47.3S4
Gas Consumption at Full Load

0.266m3/kWh
Lubricant Oil Consumption <0.2g/kWh
Voltage Stabilized Regulation ≤±1.5%
Voltage Instantaneous Regulation ≤±20%
Voltage Recovery Time (s) ≤1
Voltage Fluctuation Ratio ≤1%
Voltage Wave Aberration Ratio ≤5%
Frequency Stabilized Regulation ≤1%(adjustable)
Frequency Instantaneous Regulation -10%~12%
Frequency Fluctuation Ratio ≤1%
Net Weight, Open Type 3950kg
Dimension, Open Type 3810*1650*2220mm

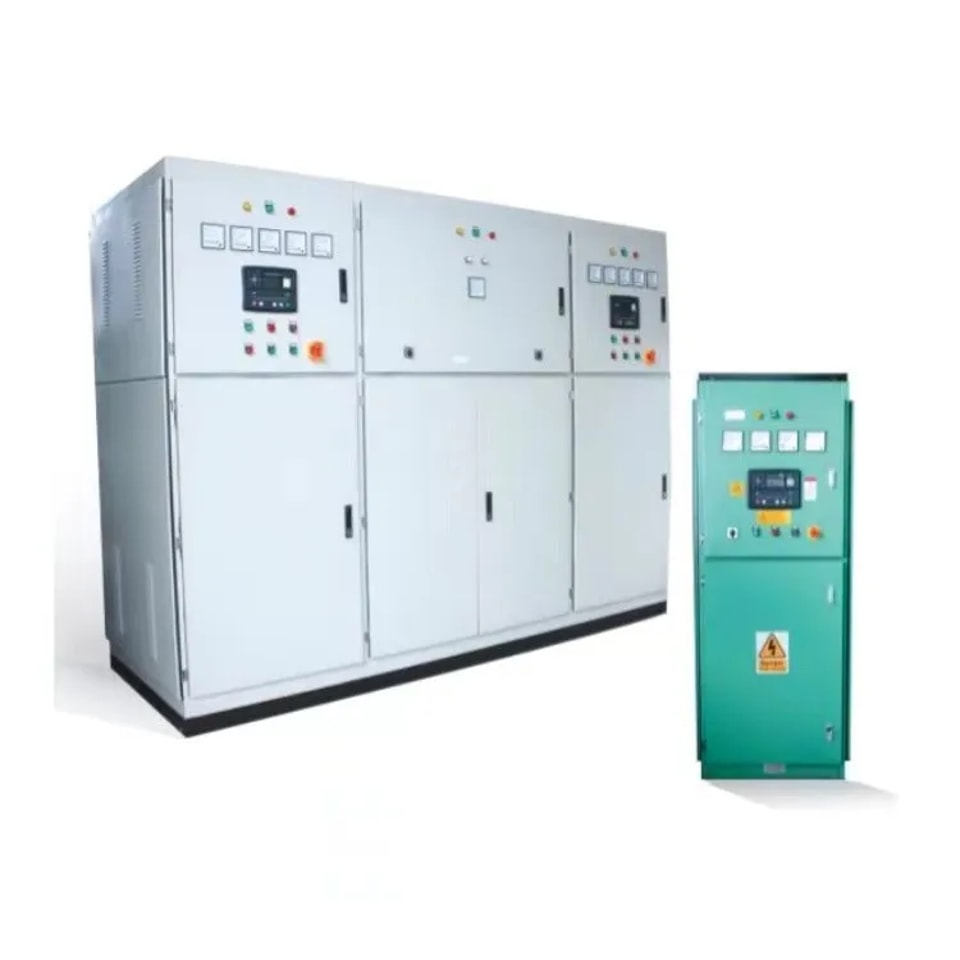

Synchronization Panel (optional)
image.png Model U1S1000
Capacity 2000A
Air Circuit Breaker Brand CHINT
Controller DSE8620 MKII/ComAp IG500G2

Features:

1. Automatically synchronize gas gensets

2. Automatically unload the genset

3. Programmed start and stop genset

4. Genset monitoring and protecting

5. Synchronize gensets with national grid(mains)/Multiple gensets paralleling.

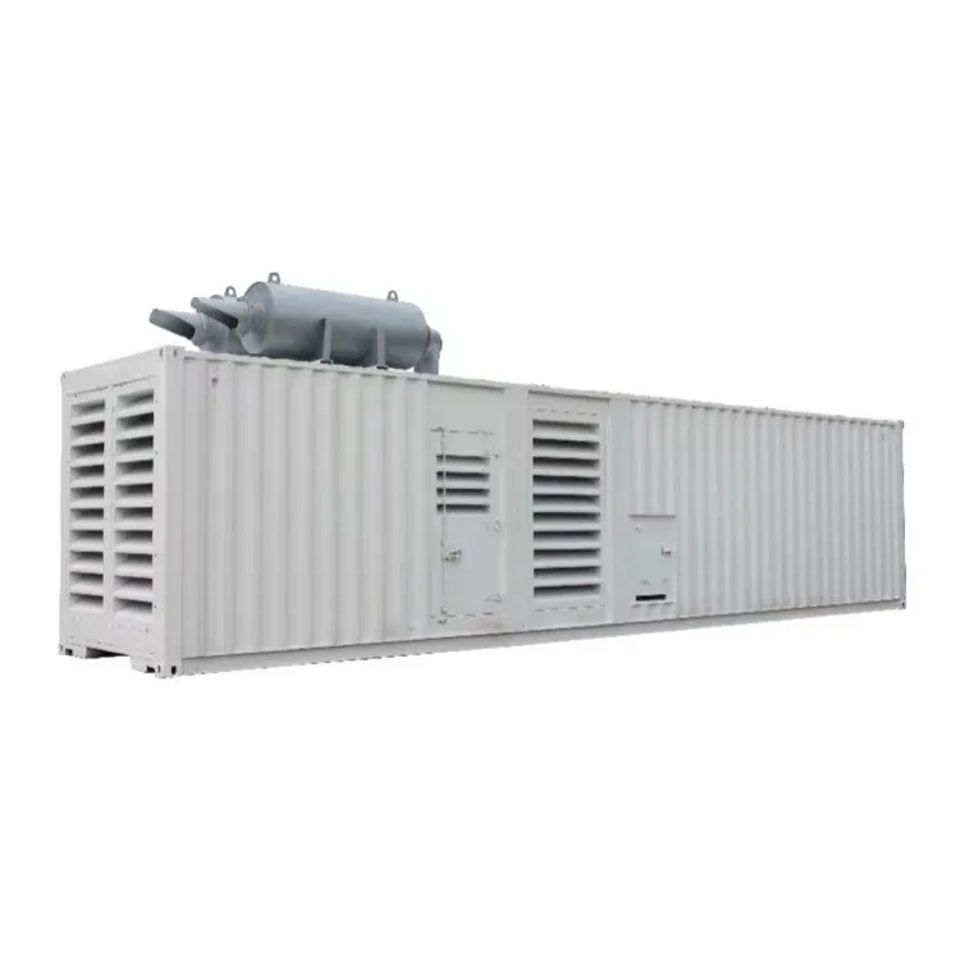

Cotainerized Canopy (optional)


Features:

1. ISO 20ft high container with CCS certificate.

2. Top-quality of paint to guarantee good protection under hard

weather.

3. Weather-proof, dust-proof, sound-proof, suitable for rigorous

environment.

4. All canopy parts are designed with modular principles and

canopy materials use strong steel board.

5. All metal canopy parts are painted by electrostatic polyester

powder paint.

6. Efficient air intake and exhaust system to ensure stable output.

7. Scientific design and advanced techniques to reduce noise level

to 75-85db(A), materials and its covers further ensure sound￾absorbing efficiency and protection function.

8. Locks of canopy design are more convenient for the operation

and maintenance also ensure the safety of gen-set more.

9. Lifting-eye and forklift design are easy for transportation.

10. Emergency stop push button outside of canopy.

11. Well-formed and compact design, the big built-in muffler

makes the noise lower.


 Automatic Oil Filling, KENCO brand. (optional)

Features:

Automatically add lubricant oil for gas genset

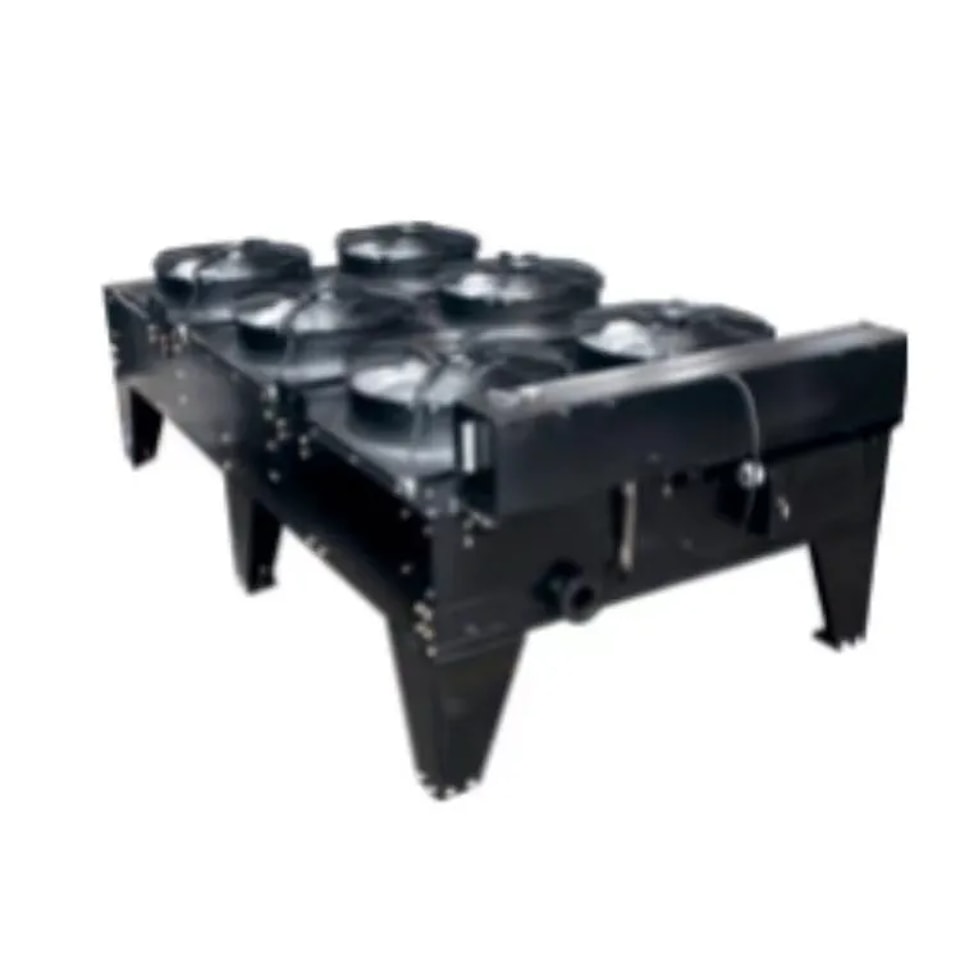

Horizontal remote radiator. (optional)

Standby remote radiator will run to cool engine when:

1. The heat recovery system is not working due to

maintenance/repair.

2. Customer does not need hot water, but need gas genset to

run to produce electricity only.

3. Engine coolant temperature is too high.

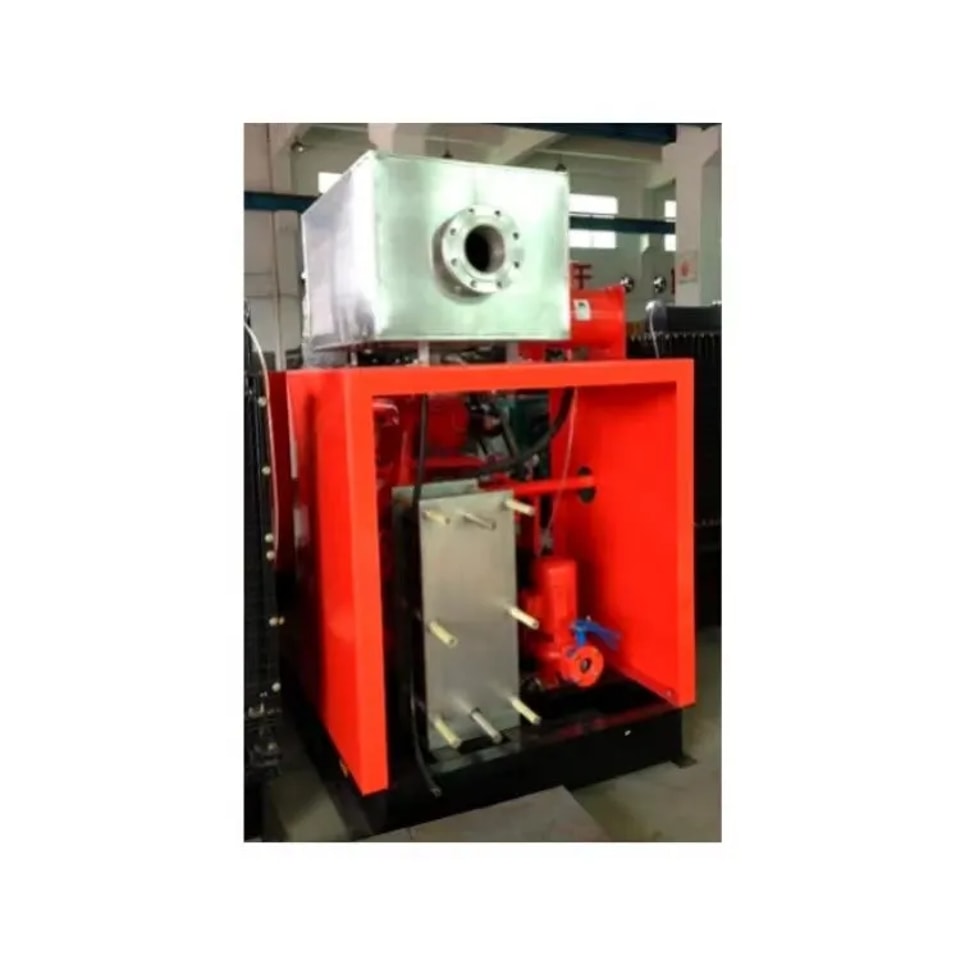

Heat recovery system. (optional)
Material
 Stainless Steel

Heat exchangers

 Jacket water plate heat exchanger and exhaust heat exchanger
Electrical efficiency 38% at 1000kWel

Thermal efficiency

 45%

Thermal power

 1184kWth
Temperature in water supply system 60℃
Temperature of water outlet 85℃
Hot water consumption 11.3L/s
Features:

Increase the total efficiency.

Hot water can be for the life and industrial use

Scope of Supply

1. Brand new Cummins gas engine.

2. Brand new brushless Leroy Somer alternator

3. Genset automatic controller, UK Deepsea DSE8620 MKII/ComAP Controller

4. 40ft high containerized soundproof canopy

5. Synchronization panel with CHINT motorized circuit breaker

6. Gas train valves (Germany DUNGS gas regulator, solenoid valve, flame arrestor, ball valve).

7. Automatic oil filling system.

8. Oil heater and coolant heater

9. Remote radiator

10. Accessories list for each engine:

Items Quantity
Silencers
 2
Elbows 1 set
Screws and Flanges
 1 set
Asbestos Pad 1 set
Anti-rust Liquid
 1
Genset starting free maintenance batteries, Battery charger, Battery cables
 1 set
Standard Toolbox 1

Documents list:
Genset Operation Manual, Genset Maintenance Manual 1 set
Engine Part Book 1
Alternator Manuals, Maintenance Manuals, Parts Book 1 set
Genset Installation Drawings Electrical System Drawings 1 set
ComAp IG-NT Controller Instruction 1
Engine Certificate Alternator Certificate, Genset Certificate 1
Genset Testing Reports 1
