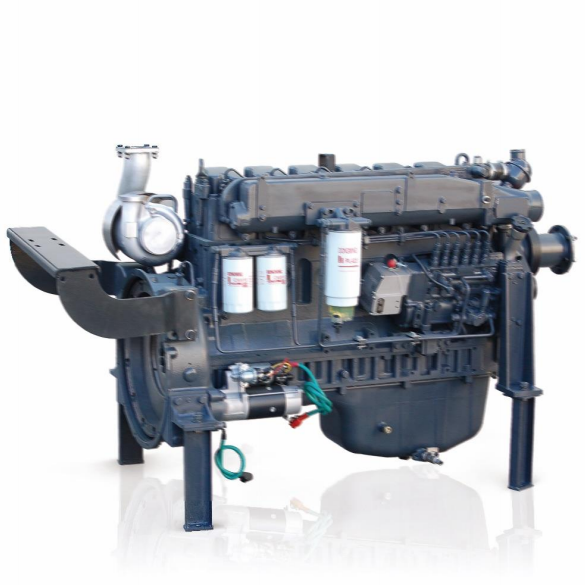

Ricardo TH6126 Series Diesel Engine

Rated power/speed(KW/r/min):
215/1500-355/1500
234/1800-355/1800
Oil pressure under calibration conditions(mpa):
0.30-0.50

Product Details

Product Tags

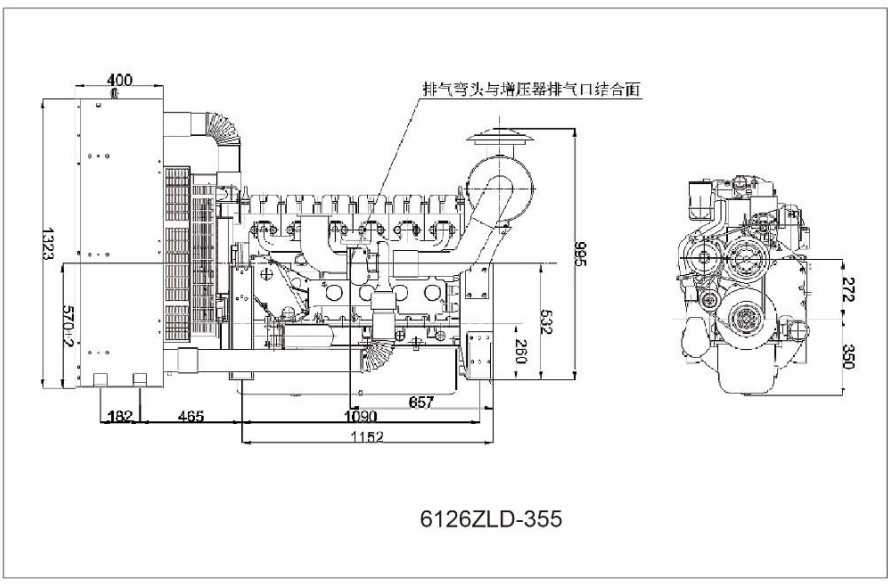

TypeTH6126ZDTH6126AZLDTH6126IZLDTH6126ZLD-355
Number of cylinders6666
Bore/stroke(mm)∮126-130∮126-135∮126-155∮126-155
Cylinder volume(L)9.72610.0911.59611.596

Compression

ratio

16∶116∶116.5∶116.5∶1
Firing sequence1-5-3-6-2-41-5-3-6-2-41-5-3-6-2-41-5-3-6-2-4
Flywheel inferfaceSAE#14SAE#14SAE#14SAE#14

Speed rugulation

method

Mechanical

speed regulation

Elcetronic speed

regulation

Mechanical

speed regulation

Elcetronic speed

regulation

Mechanical

speed regulation

Elcetronic speed

regulation

Mechanical

speed regulation

Elcetronic speed

regulation

Air intake method

Supercharged

intercooling

Supercharged

intercooling

Supercharged

intercooling

Supercharged

intercooling

Starting methodElectric startElectric startElectric startElectric start
Cooling method

Foreced water

cooling

Foreced water

cooling

Foreced water

cooling

Foreced water

cooling

Normal operating

temperature of

cooling water


≦95


≦95


≦95


≦95

Rated power/

speed(KW/r/min)

215/1500240/1500288/1500355/1500

Rated power/

speed(KW/r/min)

234/1800260/1800308/1800355/1800

Fuel consumption

(g/kw.h)

≦218≦218≦218≦218

Fuel supply

advance angle

before top

dead center

17°±16°±16°±13°±

Oil pressure

under

calibration

conditions(mpa)

0.30-0.500.30-0.500.30-0.500.30-0.50

Water tank

capacity(L)

22222830

Oil bottom

capacity(L)

25.525.525.540

Outer packaging

size

1780*950*14001780*950*14001780*950*14001780*950*1400
Weight1065106511361162
