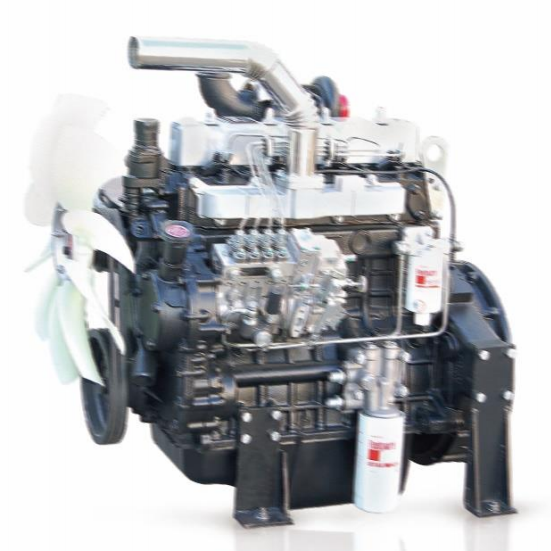

Ricardo R Series Diesel Engine

Rated power/speed(KW/r/min):
56/1500-131/1500
60/1800-145/1800
Oli pressure under calibration conditions(mpa):
0.30-0.50

Product Details

Product Tags


TypeR4105ZD

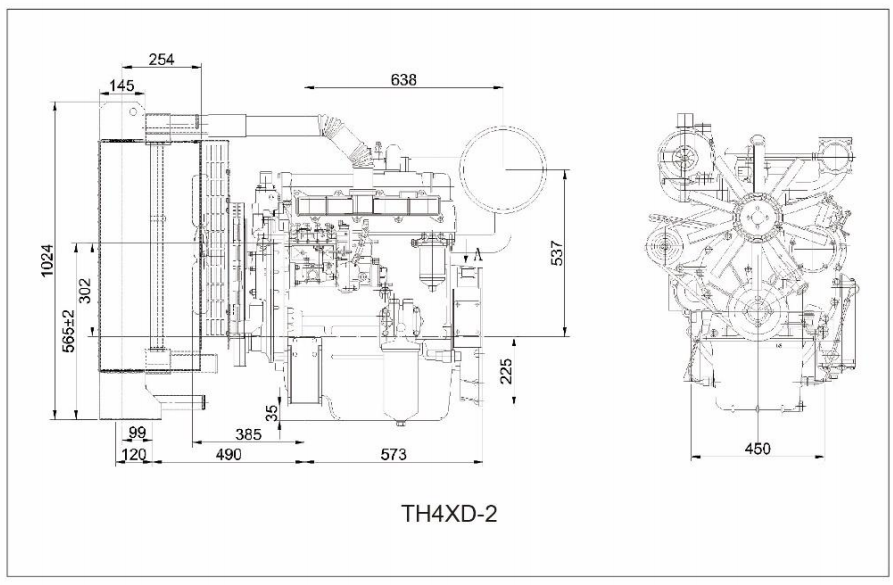

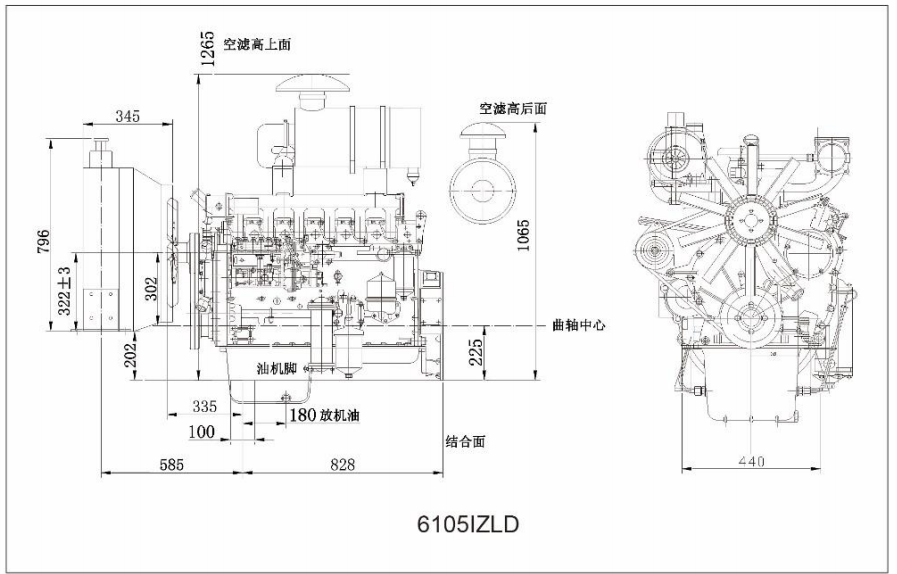

TH4XD-2R6105ZDR6105ZLDR6105AZLDR6105IZLD

Number of

cylinders

446666

Bore/stroke

(mm)

∮105-125∮110-135∮105-125∮105-125∮105-130∮105-135

Cylinder

volume(L)

4.335.326.496.496.757.02

Compression

ratio

16∶116∶116∶116∶116∶116∶1

Firing

sequence

1-3-4-21-3-4-21-5-3-6-4-21-5-3-6-4-21-5-3-6-4-21-5-3-6-4-2

Flywheel

inferface

SAE3#11.5SAE3#11.5SAE3#11.5SAE3#11.5SAE3#11.5SAE3#11.5

Speed

rugulation

method

Mechanical

speed

regulation

Electronic

speed

regulation

Mechanical

speed

regulation

Electronic

speed

regulation

Mechanical

speed

regulation

Electronic

speed

regulation

Mechanical

speed

regulation

Electronic

speed

regulation

Mechanical

speed

regulation

Electronic

speed

regulation

Mechanical

speed

regulation

Electronic

speed

regulation

Air intake

method

Boosting

Supercharged

intercooling

Boosting

Supercharged

intercooling

Supercharged

intercooling


Supercharged

intercooling


Starting

method

Electric

start

Electric

start

Electric

start

Electric

start

Electric

start

Electric

start

Cooling

method

Foreced

water

cooling

Foreced

water

cooling

Foreced

water

cooling

Foreced

water

cooling

Foreced

water

cooling

Foreced

water

cooling

Normal

operating

temperature

of cooling

water

≤90≤90≤90≤90≤90≤90

Rated

power/speed(KW/r/min)

56/1500110/150084/1500100/1500110/1500132/1500

Rated

power/speed

(KW/r/min)

60/1800
110/180088/1800110/1800121/1800145/1800

Fuel

consumption

(g/kw.h)

≦231≦205≦224≦225≦225≦225

Fuel supply

advance

angle before

top dead

center

17°±13°±17°±17°±17°±17°±

Oil pressure

under

calibration

conditions

0.30-0.050.30-0.050.30-0.050.30-0.050.30-0.050.30-0.050.30-0.05

Water tank

capacity(L)

9.216.313.113.113.113.1

Oil bottom

capacity(L)

141416161616

Outer

packaging

size

1130*820*11501020*800*11901400*820*12001400*820*12001400*820*12001400*8200*1200
Weight439501560565565572
