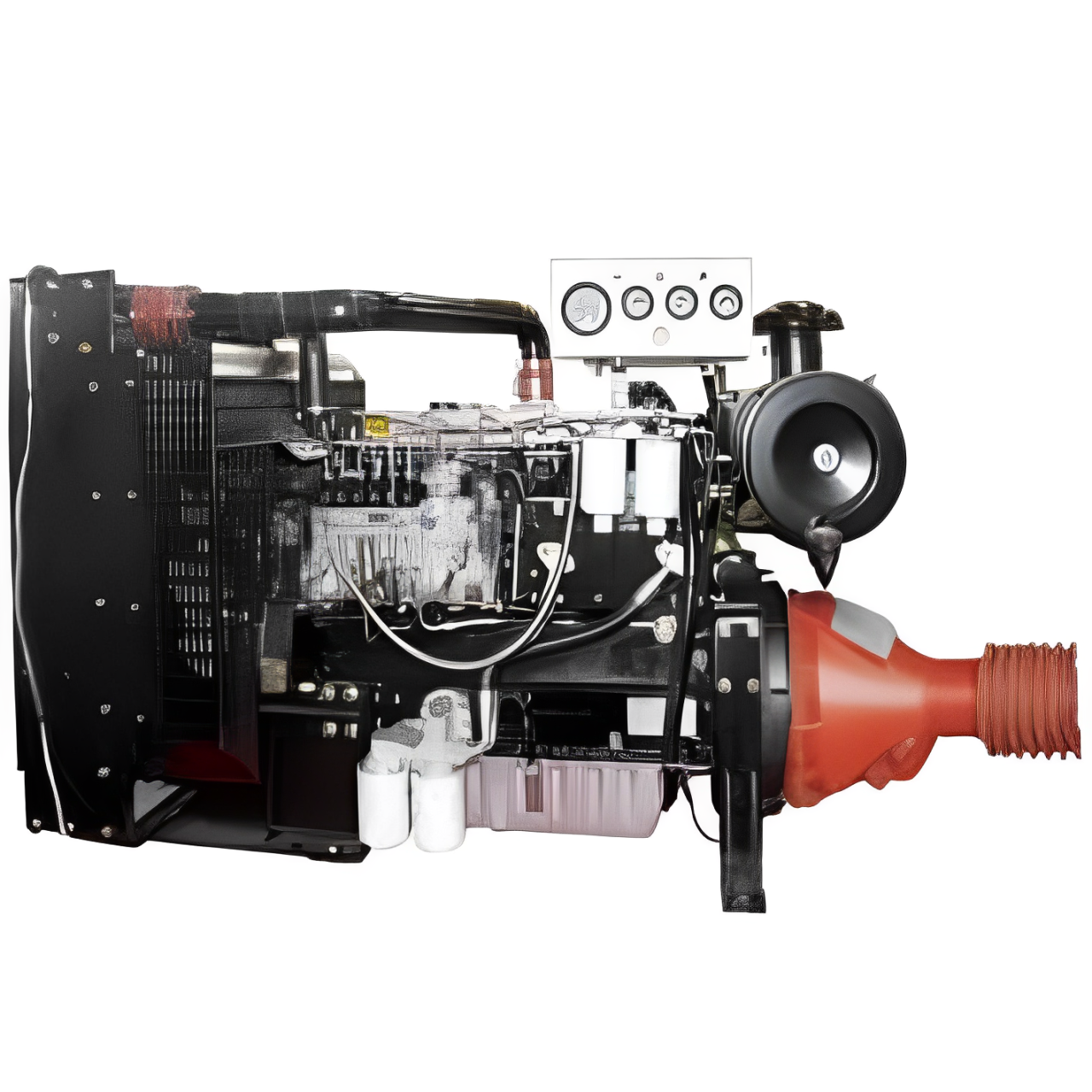

Diesel Engine For Water-Pumping Set

Diesel Engine For Water-Pumping Set From Evol

Cyl.No.:4-Cyl.,6-Cyl.
Displacement(L）：3.99，5.98
Engine Prime Power:
(kW/1500rpm):40-121
(kW/1800rpm):44-130
(kW/2200rpm):50-135
Cold Start With Preheater(Optional):-25℃

INQUIRY Whatsapp

Product Details

Product Tags

Engine Model		1004-4Z	1004-4TZ	1006-6TZ	1006-6TAZ
Engine Model		E4α 100 Series		E6α 100 Series
Cyl.No.		4-Cyl.	4-Cyl.	6-Cyl.	6-Cyl.
Induction System		NA	T	T	TA
Displacement(L)		3.99	3.99	5.98	5.98
Bore×Stroke(mm)		100×127	100×127	100×127	100×127
Engine Prime Power	kW/1500rpm	40	66	92	121
	kW/1800rpm	44	76	108	130
	kW/2200rpm	50	75	92	135

Governor Type		Mechanical
Specific Fuel Consumption(g/kW.h)		210	205	205	205
Cold Start	Without Preheater	-10℃	-10℃	-10℃	-10℃
	With Preheater (Optional)	-25℃	-25℃	-25℃	-25℃
Elctrical System		12V	12V	12V	12V
Elctrical Net Weight(KG)		495	515	660	700
Engine Overall Size(mm)		1275735938		15467591106	16328111043
Flywheel/Flywheel Housing		SAE/11.5"
Remarks: Engines with 1500rpm and 1800rpm have 10% power reserve. Engines with 2200rpm no need to have 10% power reserve, customers can use this power directly.
