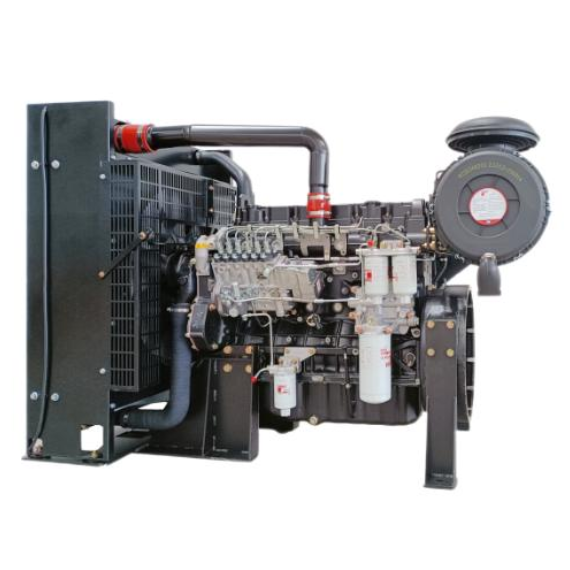

Diesel Engine With in-line pump for gensets from Evol

Cyl.No.: 4-Cyl.,6-Cyl.
Displacement(L): 3.99, 5.98
Engine Prime Power：
(kW/1500rpm):40-176
(kW/1800rpm):44-178
Engine Standby Power
(kW/1500/rpm):44-194
(kW/1800/rpm):48-196
Generator Prime Power：
(kW/1500/rpm):35-109
(kW/1800rpm):39-121
Cold Start With Preheater(Optional):-25℃

INQUIRY Whatsapp

Product Details

Product Tags

Engine Model		1004G	1004TG	1004TAg	1006TG1A	1006TG2A	1006TAG
Engine Model		E4α100 series			E6α 100 Series
Cyl.No.		4-Cyl.	4-Cyl.	4-Cyl.	6-Cyl.	6-Cyl.	6-Cyl.
Induction System		NA	T	TA	T	T	TA
Displacement(L)		3.99	3.99	3.99	5.98	5.98	5.98
Bore×Stroke(mm)		100×127	100×127	100×127	100×127	100×127	100×127
Engine Prime Power	kW/1500rpm	40	66	85	84	92	121
Engine Prime Power	kW/1800rpm	44	76	※	98	108	134
Engine Standby Power	kW/1500rpm	44	72	96	93	102	134
Engine Standby Power	kW/1800rpm	48	83	※	107	119	147

Governor Type		Mechanical		Electronic	Mechanical		Electronic
Noise dB(A)		≦96	≦96	≦96	≦96	≦96	≦96.7
Specific Fuel Consumption(g/kW.h)		210	205	205	205	205	205
Cold Start	Without Preheater	-10℃	-10℃	-10℃	-10℃	-10℃	-10℃
Cold Start	With Preheater(Optional)	-25℃	-25℃	-25℃	-25℃	-25℃	-25℃
Electrical System		12V/24V	12V/24V	12V	12V/24V	12V/24V	12V/24V
Engine Net Weight(KG)		495	515	565	660	660	700
Engine Overall Size(mm)		1275735938		13788111043	15467591106		16328111043

Flywheel/Flywheel

Housing

SAE3/11.5"

Generator

Prime

Power

kW/1500rpm

109

kW/1800rpm

※

121

Engine Model	E6α 104-P145A	E6α 104-P165A	E6α 104-P176A
	E6α 104 Series
Cyl.No.	6-Cyl.
Induction System	TA
Displacement(L)	6.67
Bore×Stroke(mm)	104×130

Engine Prime Power	kW/1500rpm	145	165	176
Engine Prime Power	kW/1800rpm	155	178	※
Engine Standby Power	kW/1500rpm	160	178	194
Engine Standby Power	kW/1800rpm	170	196	※

Governor Type		Electronic
Noise dB(A)		≤96.7	≤96.7	≤96.7
Specific Fuel Consumption(g/kW.h)		210	211	213
Cold Start	Without Preheater	-10℃	-10℃	-10℃
	Without Preheater(Optional)	-25℃	-25℃	-25℃
Electrical System		12V	12V	12V
Engine Net Weight(KG)		865	865	865
Engine Overall Size(mm)		18559361232
Flywheel/Flywheel Housing		SAE2/11.5"
