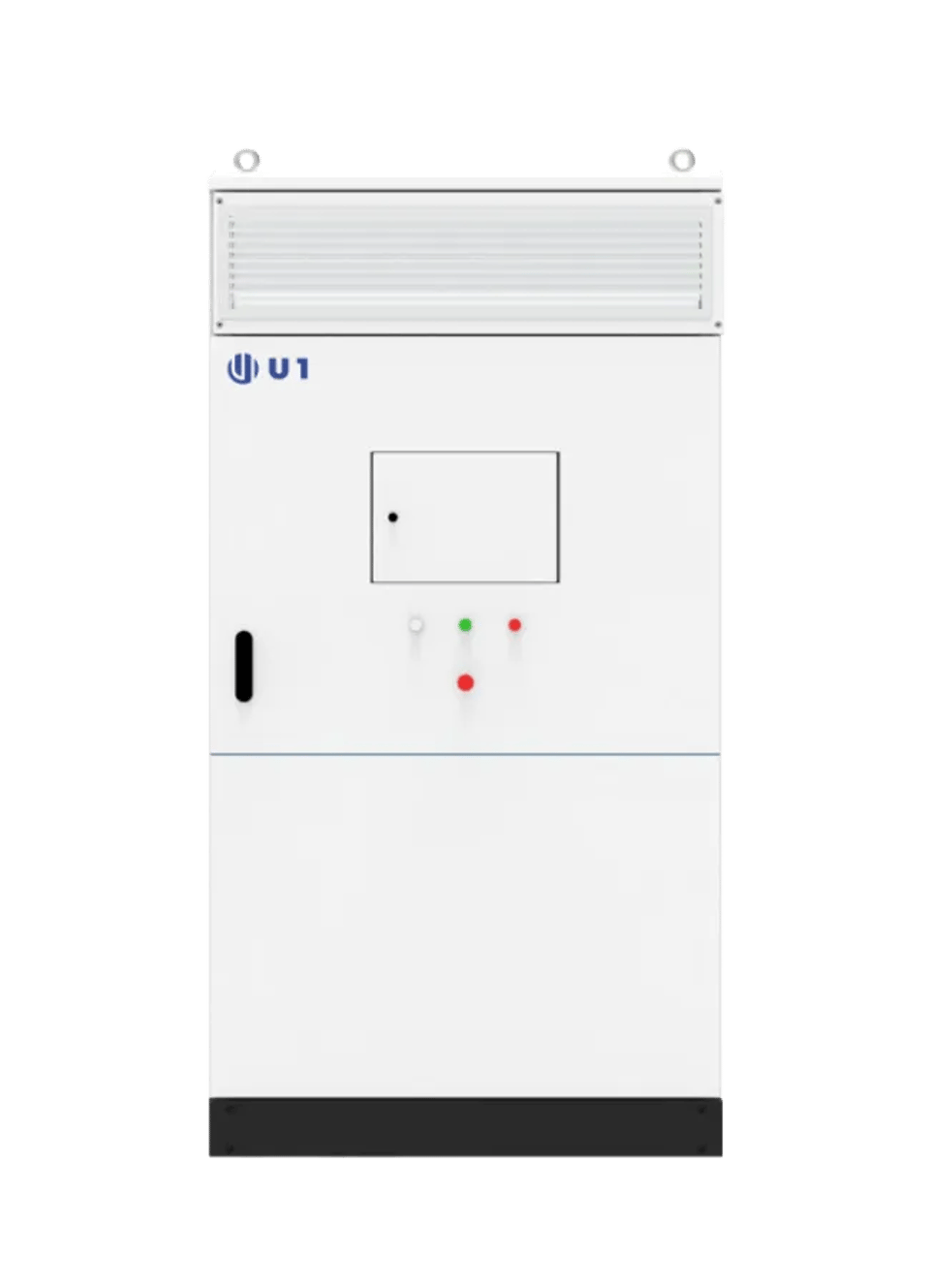

101kWh Air-cooled Cabinet

101kWh Air-cooled Cabinet

UP-E101WX

The all-in-one air-cooled ESS cabinet integrates long-life battery,efficient balancing BMS, high-performance PCS, active safety system,smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

Learn More →

Main Features

Fast Response

1P fast charge/discharge rate.

Energy Saving

Achieve utilization of new energy via energy storing & releasing of renewables.

Economical & Efficient

Conversion efficiency over 88%, DOD up to 100%.

Smart O & M

Smart OSM divesified access of monitoring by HMI (local), APP/web (remote).

Flexible Expansion

Modular design, simplified parallel expansion, fast expansion.

Safe & Reliable

IP55, fully tested and optimized thermal management, cell difference ≤6℃.

Specifications

DC Side
Cell TypeLFP / 120 Ah
Pack Configuration9.2 kWh / 1P24S
System Configuration / Rated DC Voltage101 kWh / 1P264S
844.8V
DC Voltage Range739.2 ～ 950.4V
Max. Charge / Discharge Rate1P
Max. Depth of Discharge100% (25±2℃)
AC Side
Rated Output Power100 kW
Max. Apparent Power110 kVA
Rated AC Voltage230 / 400V
AC Voltage Range±15%
Grid Type3W+PE / 3W+N+PE
Rated Frequency50Hz / 60Hz
Power Factor0.99 (adjustable -1 ～ +1)
THDi≤ 3%
DC Ratio< 0.5% lpn
General
Round Trip Efficiency≥ 88%
Cycle Life≥ 5,500 cycles
CommunicationModbus TCP/IP
Fire Suppression SystemAerosol
Ingress RatingIP55
CoolingForced air cooling
Operating Temperature-25℃ ~ 55℃ (Derating after 45℃)
Anticorrosion RatingC4 (C5 optional)
Humidity0 ~ 95% RH (non-condensing)
Noise≤ 75 dB
Altitude4000m (Derating above 2000m)
Dimensions (W*D*H)1,250 * 1,200 * 2,150 mm
Weight2,000 kg
CertificationUN38.3, IEC62477-1, IEC61000, IEC62619, IEC63056, EN50549
