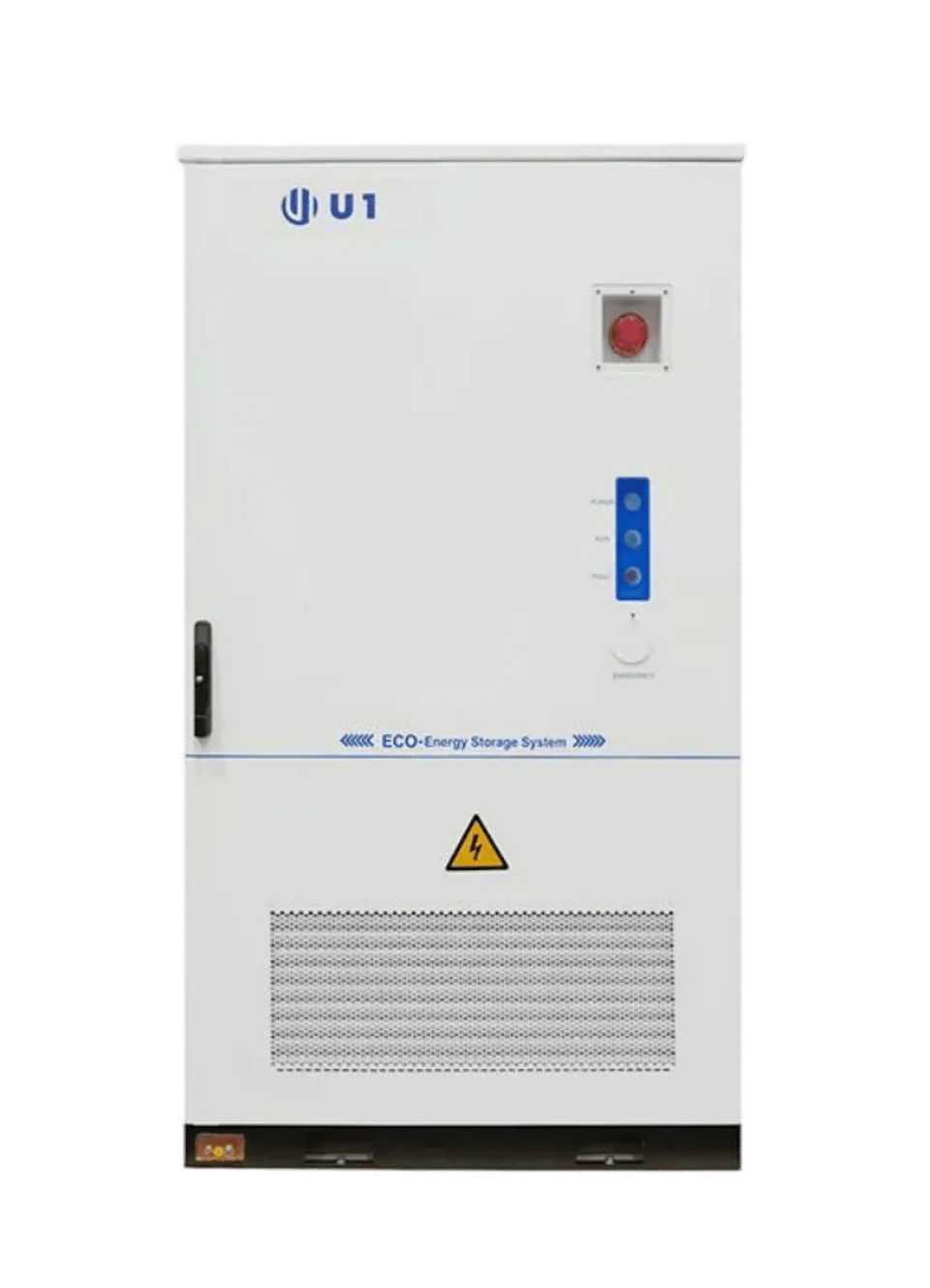

241kWh Air-cooled ESS Cabinet

241kWh Air-cooled ESS Cabinet

UP-E241WP

integrates a long-life battery, The UP-E241WP-2A high-performance PCS, efficient balancing BMS, active safety systems, smart distribution, and HVAC into a single cabinet, ensuring long-term operation with superior safety, stability, and reliability. Through AC-side parallel connections, it enables agile deployment of ESS power with flexible capacity expansion.

Learn More →

Main Features

Ecnomical & Efficient

RTE over 89%, DODup to 100%.

Safe & Reliable

IP55 protection level, optimized ventilation design, cells temperature difference <6°C.

Commpact

1.8m² footprint only,easy transportation & fast installation.

Long Cycle Life

Over 8,000 times cycle life, excellent performance of battery system.

Flexible Expansion

Modular design, simplified parallel expansion, fast expansion.

Safe &Reliable

IP55, fully tested and optimizedthermal management, cell difference≤6℃。

Specifications

DC Side
Cell TypeLFP/314 Ah
Pack Configuration24.1kWh/1P24S
System Configuration / Rated DC Voltage241kWh/1P240S
DC Voltage Range768V
Max. Charge / Discharge Rate672~864V
Max. Depth of Discharge100%(25±2℃)
AC Side
Rated Output Power125kW
Max. Apparent Power138KVA
Rated AC Voltage230/400V
AC Voltage Range±15%
Grid Type3W+PE/3W+N+PE
Rated Frequency50Hz / 60Hz
Power Factor0.99/-1~+1
THDi≤ 3%
DC Ratio< 0.5% lpn
General
Round Trip Efficiency≥89%
Cycle Life≥8,000 cycles
CommunicationModbus TCP/IP
Fire Suppression SystemAerosol
Ingress RatingIP55
CoolingForced air cooling
Operating Temperature-25℃ ~ 55℃ (Derating after 45℃)
Anticorrosion RatingC4 (C5 optional)
Humidity0 ~ 95% RH (non-condensing)
Noise≤ 75 dB
Altitude4000m (Derating above 2000m)
Dimensions (W*D*H)1,250*1,450*2,250mm
Weight2,600kg
CertificationUN38.3,IEC62477-1,IEC61000,IEC62619,IEC63056
