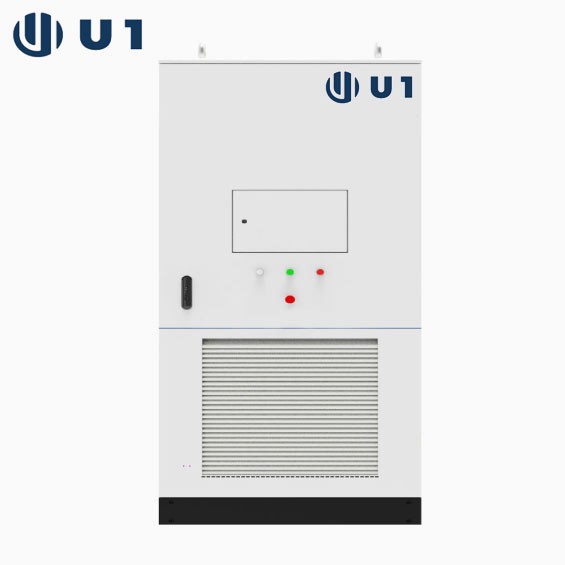

100kw/233kWh Liquid Cooling All-in-One Battery Energy Storage Cabinet

INQUIRY Whatsapp

Product Details

Product Tags

Product Paraments ：

DC Side
Cell Type	LFP280Ah
PACK	46.592kWh/1P52S
Battery System	232.96kWh/1P260S
Voltage Range	728~936Vdc
PACK Ingress Rating	IP65
AC Side
Rated Power	100kW
Max. Power	110kW
THDi	<3%
DC Ratio	<0.5%Ip
Nominal Voltage	400Vac/3P+N+PE
Nominal Frequency	50/60 Hz
General
System Efficiency	≥90%
Charge/Discharge Rate	0.5P
DoD	95%（25±2℃）
SOC Accuracy	<3%
Cycle Life	≥8,000 times
Switching Time	<100ms
Connectivity	Ethernet /RS485
Ingress Rating	IP55
Cooling	Active liquid cooling
Operating Temperature	-25ºC~55ºC
Humidity	0-95%RH, non-condensing
Noise	≤75dB
Altitude	≤2,000m (derating above 2,000m)
Fire Safety	Aerosol
Dimensions (WDH)	1,0501,3502,400 (mm)
Weight	2,570kg
Compliance	UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549

Main Features

Compact	1.4m² footprint only, easy transportation & fast installation
High Integration	233kWh energy in one cabinet and ensure long-term endurance.
Efficient Cooling	Optimal in-PACK duct design, achieve high-efficient cooling and low energy consumption.
Long Cycle Life	Over 8,000 times cycle life, excellent performance of battery system.
Flexible Expansion	Modular design, simplified parallel expansion
Ultimate Safety	In-PACK fire warning and protection with NOVEC1230/aerosol, prevent heat diffusion and runaway

Product Details:

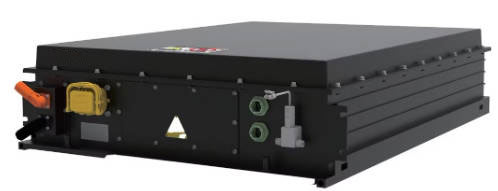

Liquid -Cooled Pack :

Features:

1.Consisting of LFP cells, grouping in 1P52S.

2.With built in BMU,HV connectors, liquid cooling plate

3.Moudled and fixed structural components.

4.Overvoltage ,undervoltage, overcurrent, insulation,short circuit and overheat protect.
5.Over 8,000 times cycle life
6.10 years designated lifespan

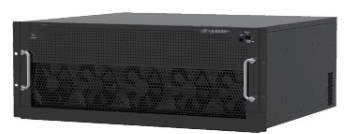

PCS :

Features:
1.Modular inverter designed for a small-scale ESS
2Achieve bidirectional energy conversion in ESS
3.Adapting various scenarios :C&I ESS, PV-plus microgrid with ESS

4.Conversion efficiency:99%.

5.IP65,ms-level on-/off-grid switching.

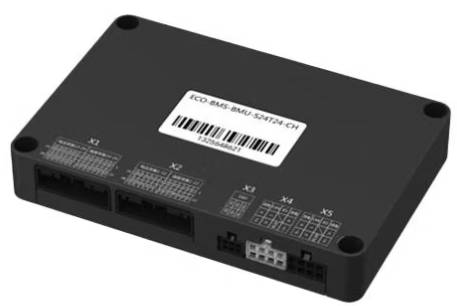

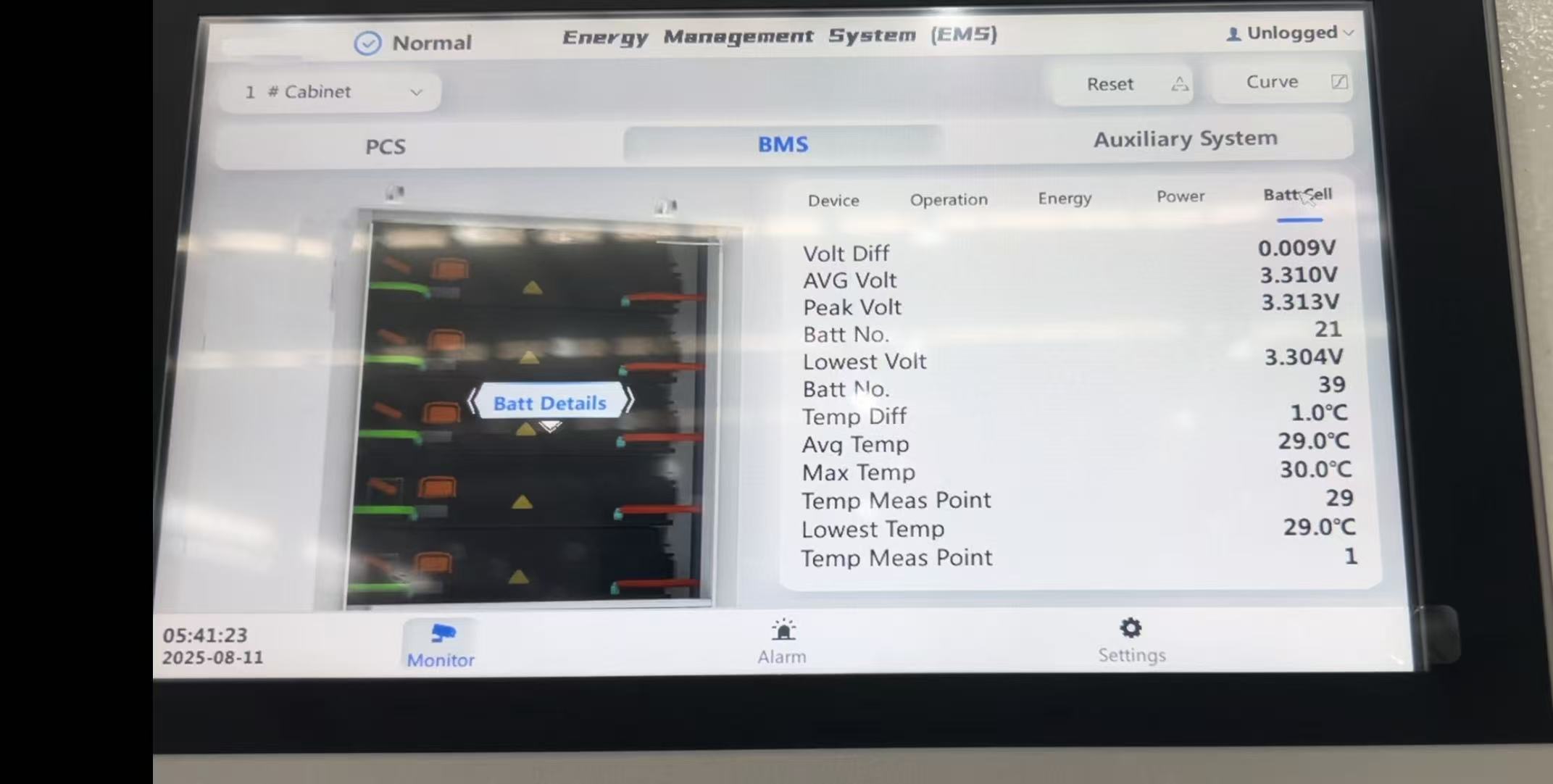

BMS:

Features:

1.SOC Estimation Accuracy Error< 5%

2.100ms sampling interval to ensure timeliness of data

3.Multiple types of Dl/D0 interfaces 4.Real time monitoring battery saftey status,

fault diagnosis, and offer warning

4.Supporting two architectures:

three-level architecture(BMU+BCU+BAU),

two-level architecture(BMU+BCU)

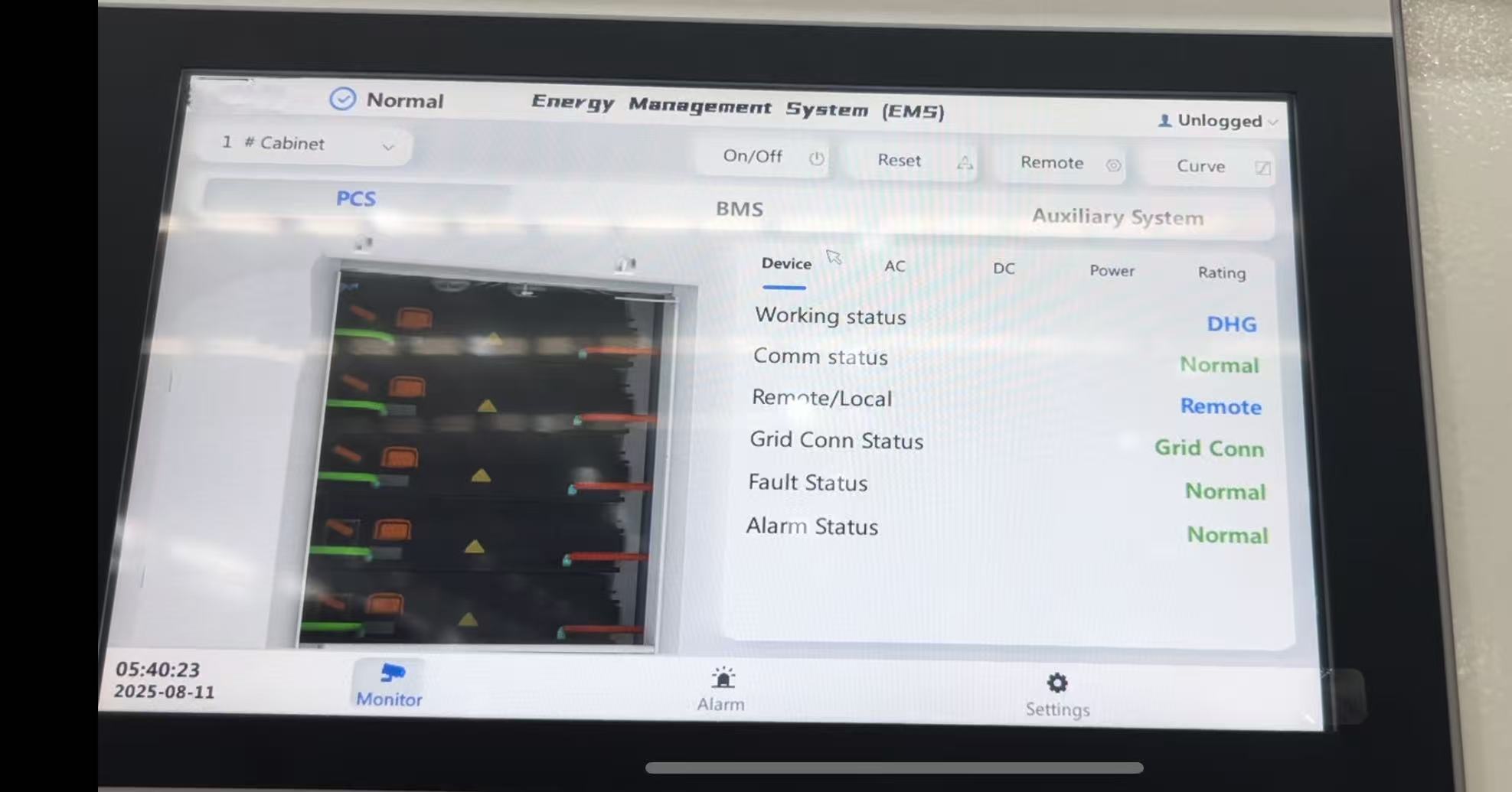

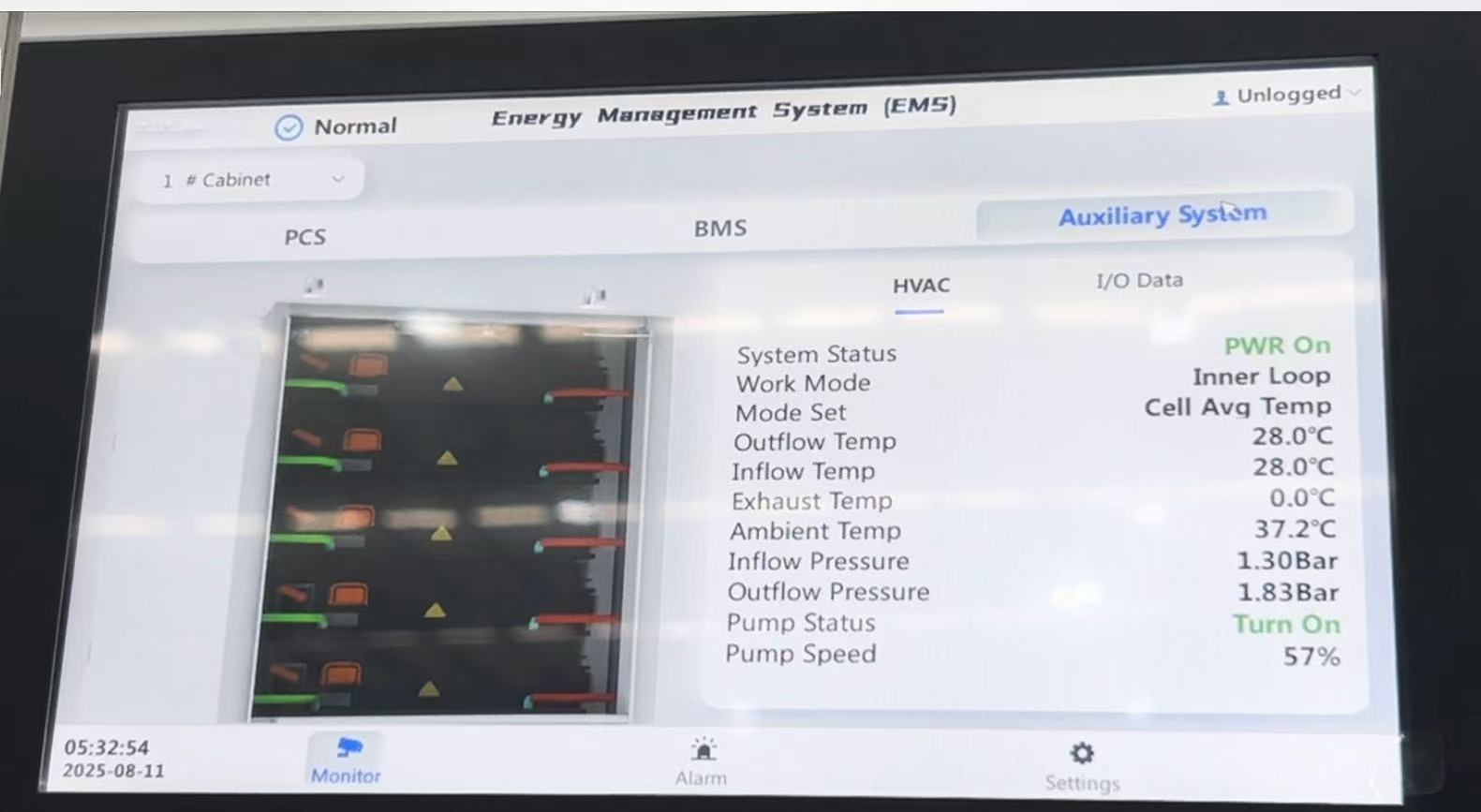

EMS Cloud Platform

EMS Platform can monitor of PCS,BMS,air conditioning in real time.It can adapt charge and discharge strategies to achieve energy peak and valley

arbitrageReducing customer electricity costs. EMS series products adopting an integrated architecture design, the system is suitable for user-side ESS,

microgrid and PV-plus ESS and more. It ensures that the system operates optimally at all times, maximizing overall benefits and shortening ROI.

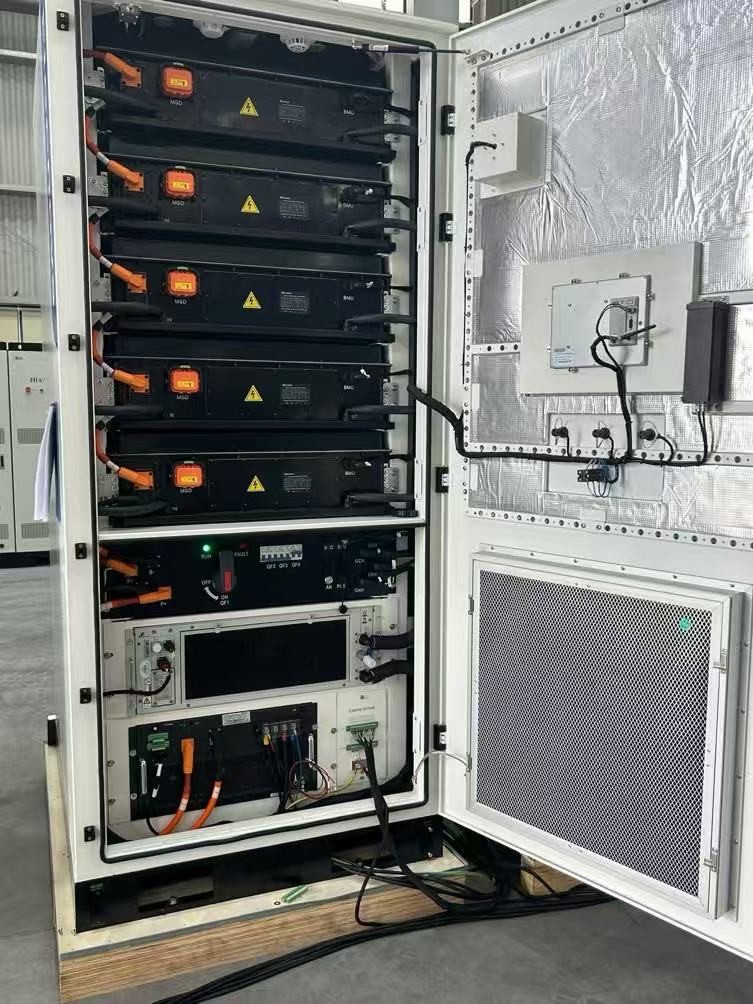

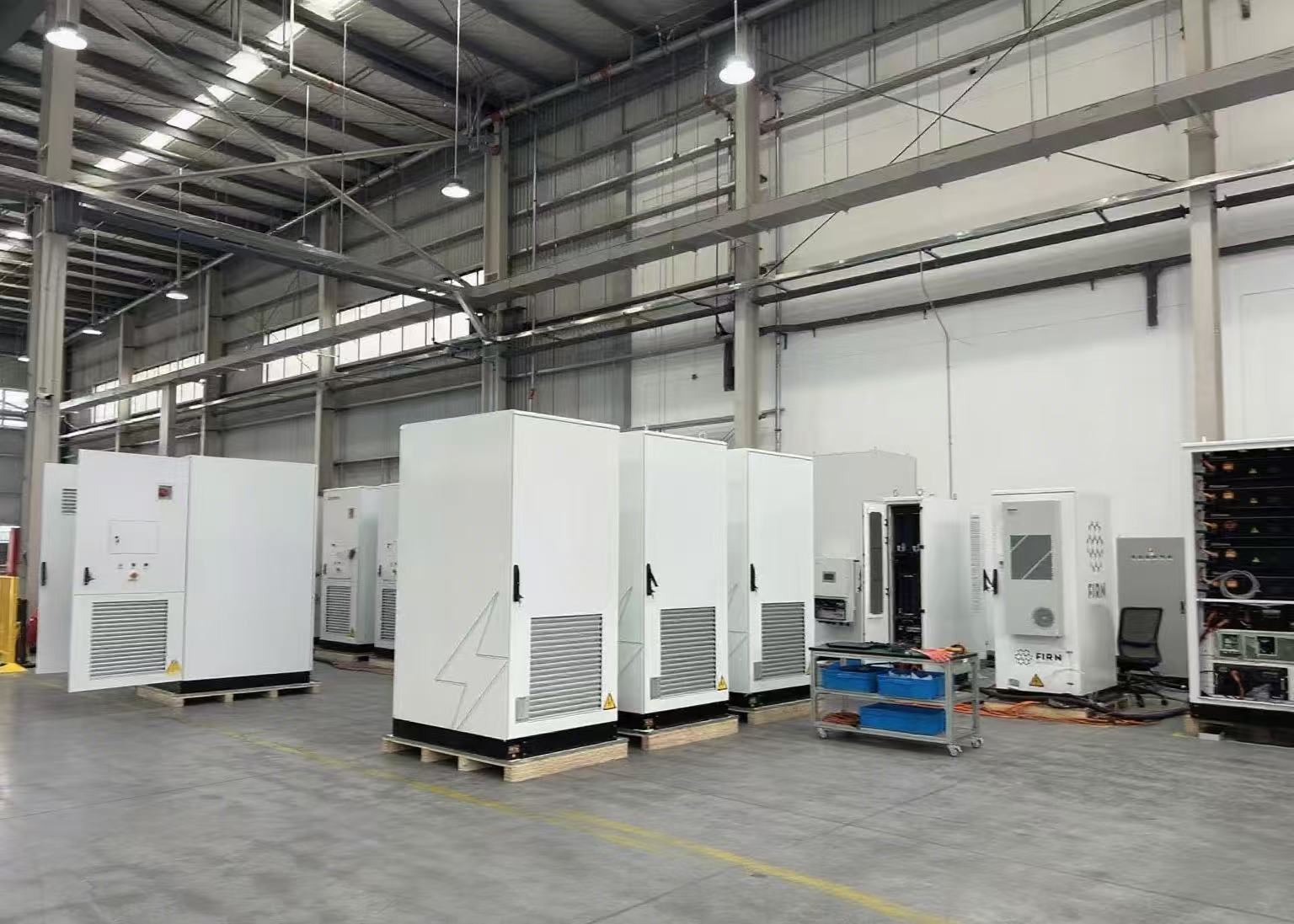

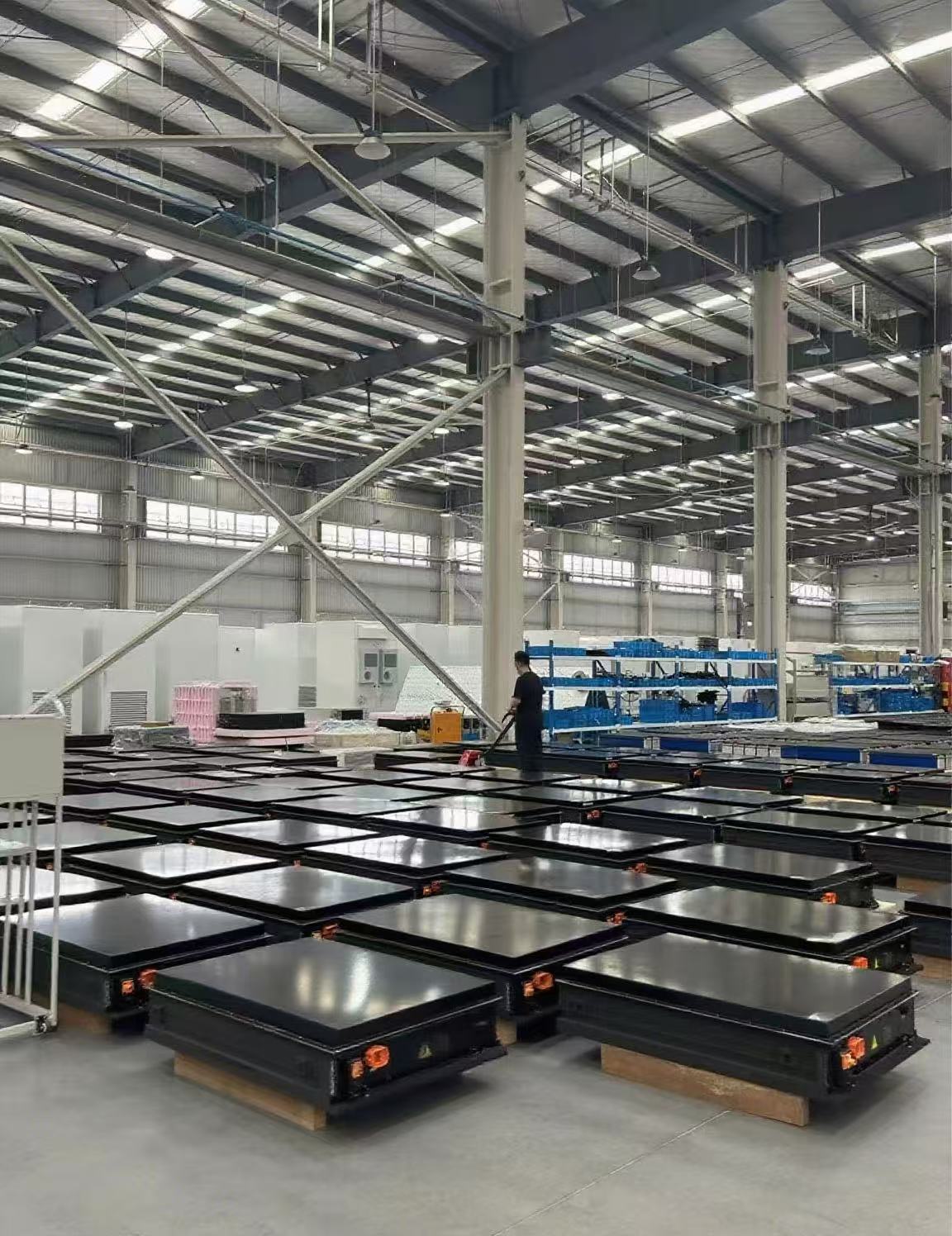

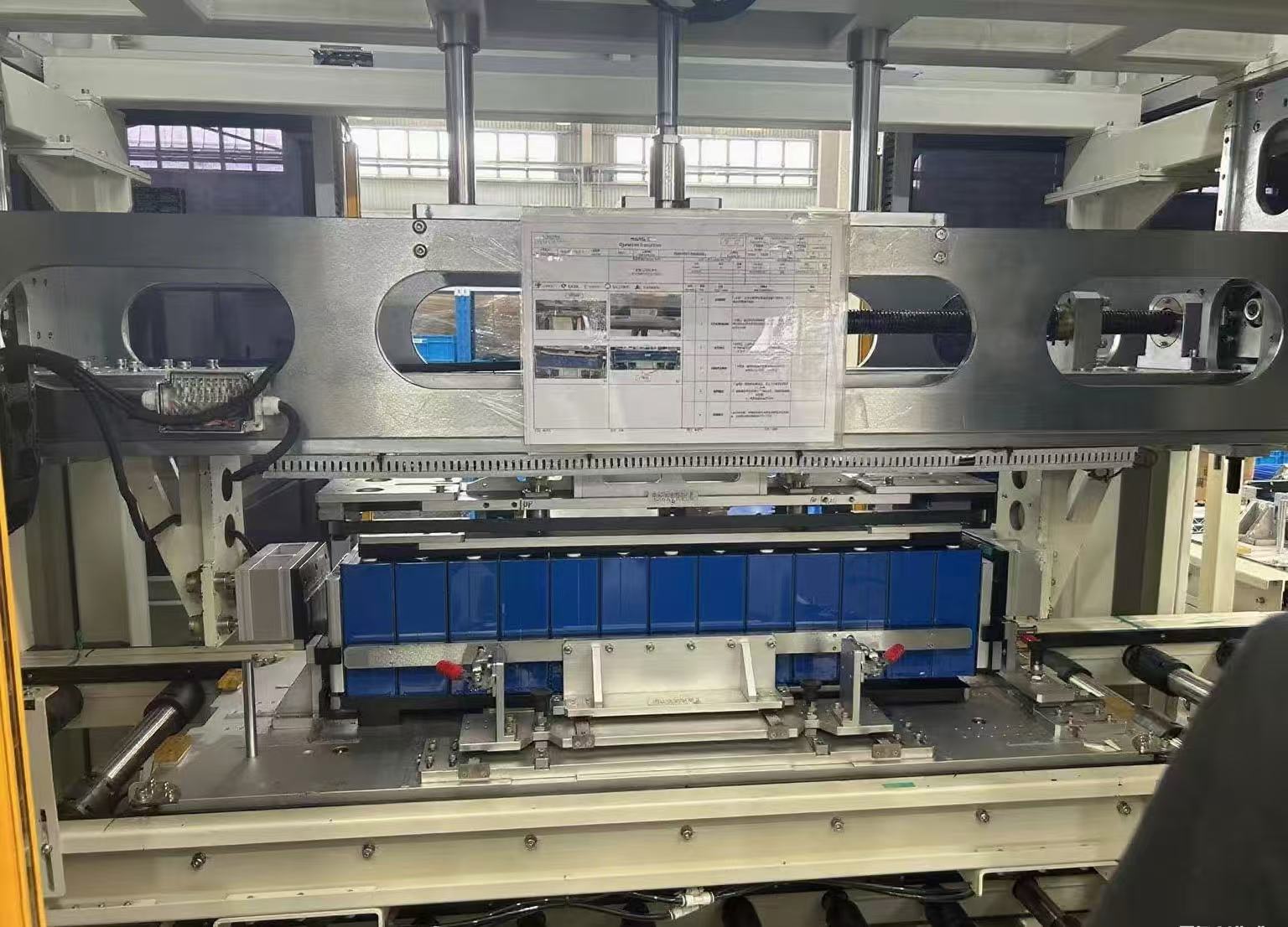

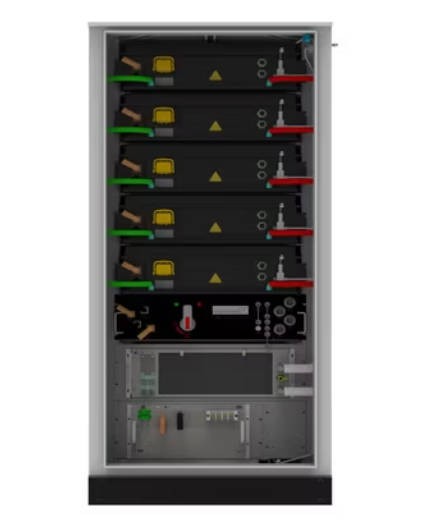

Detailed Photo:
