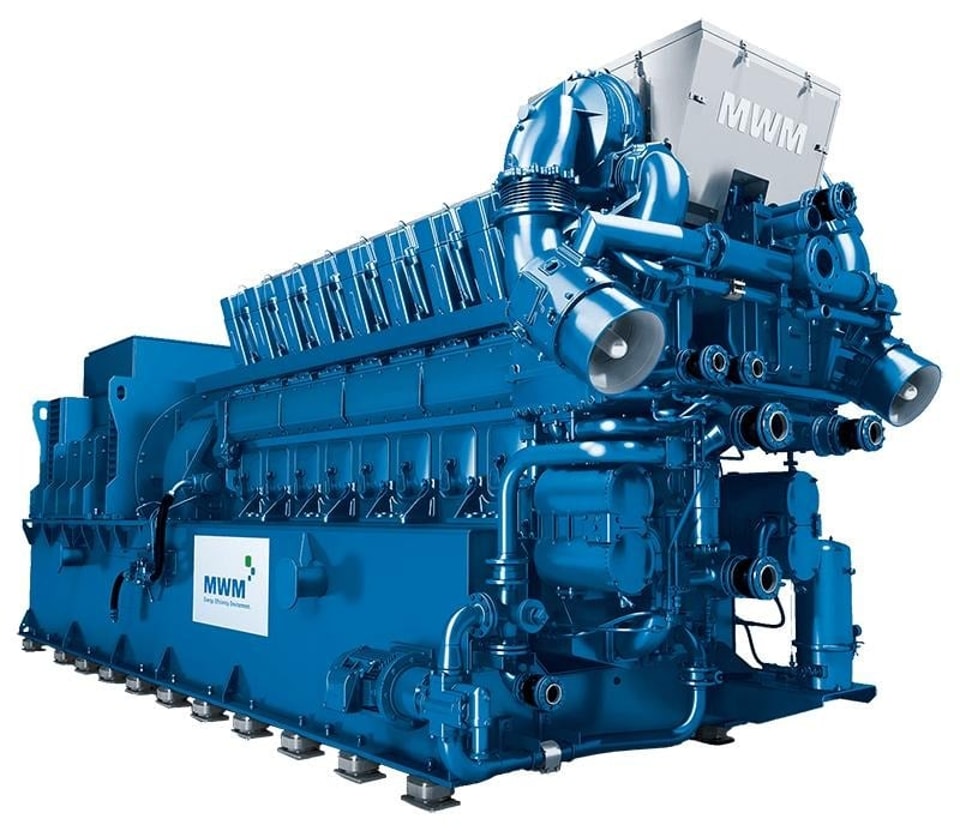

4.3MW Gas Gensets Powered by MWM
Engine Model: TCG 2032 V16
Continuous Power: 4300kW
Frequency: 50Hz
Speed: 1000RPM
Voltage: 10.5KV
Fuel Gas: Natural Gas

Gensets Specification
| Gas Generator Set Data | |
Engine / Configuration code: | TCG 2032 V16 |
Speed / Mean piston speed: | [1/min] / [m/s] 1000 / 10,7 |
Configuration / number of cylinders: | [ - ] V / 16 |
Bore / Stroke / Displacement: | [mm] / [mm] / [dm3 ] 260 / 320 / 272 |
Compression ratio: | [ - ] 12,0 |
Mean effective pressure: | [bar] 19,4 |
Mean lube oil consumption at full load: | [g/kWh] 0,2 |
Generator: | Marelli MJH 800 MC6 or similar (*) |
Voltage / voltage range / cos Phi: | [V] / [%] / [-] 10500 / 10 / 1,00 |
Speed / frequency: | [1/min] / [Hz] 1000 / 50 |
