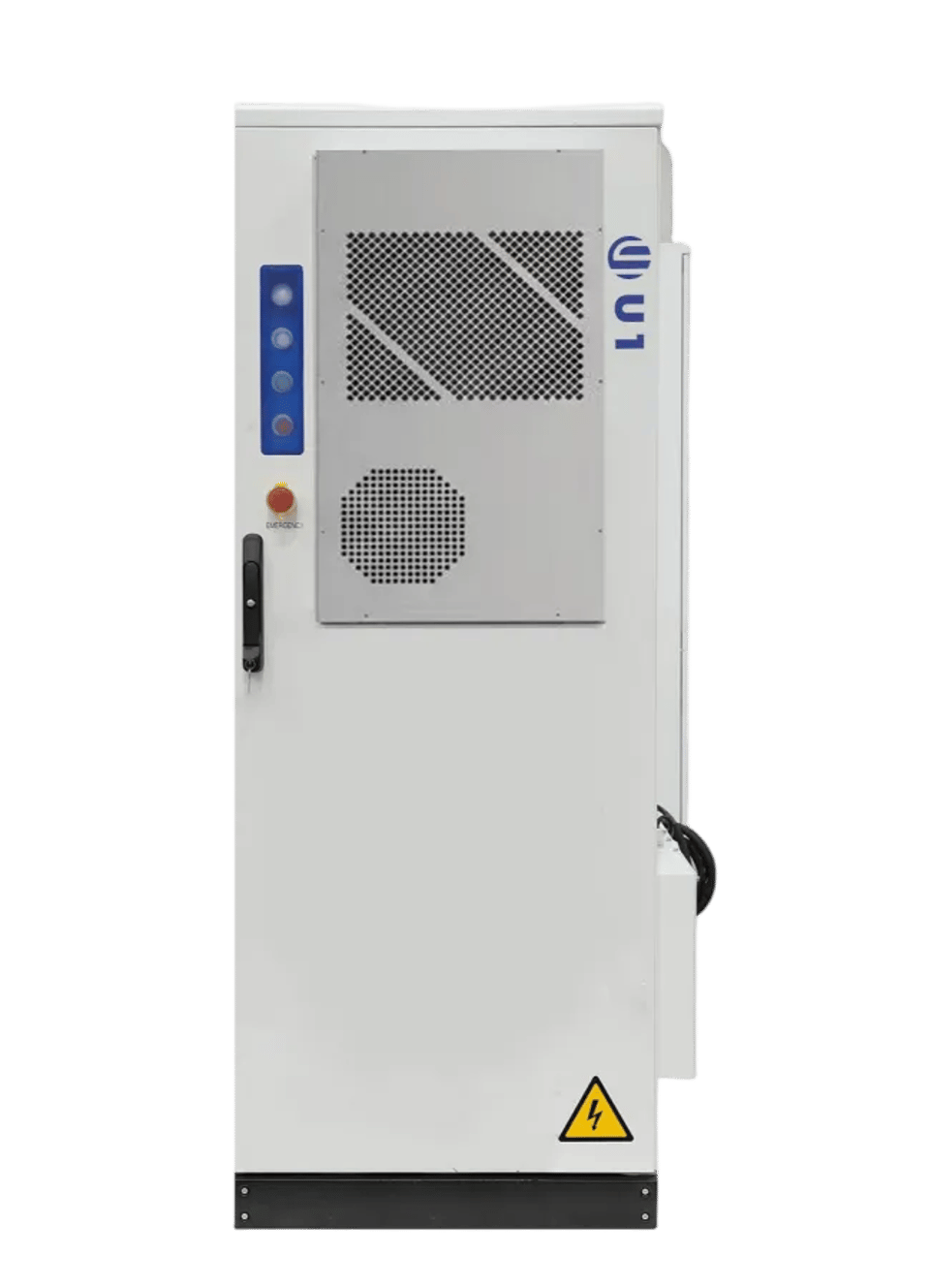

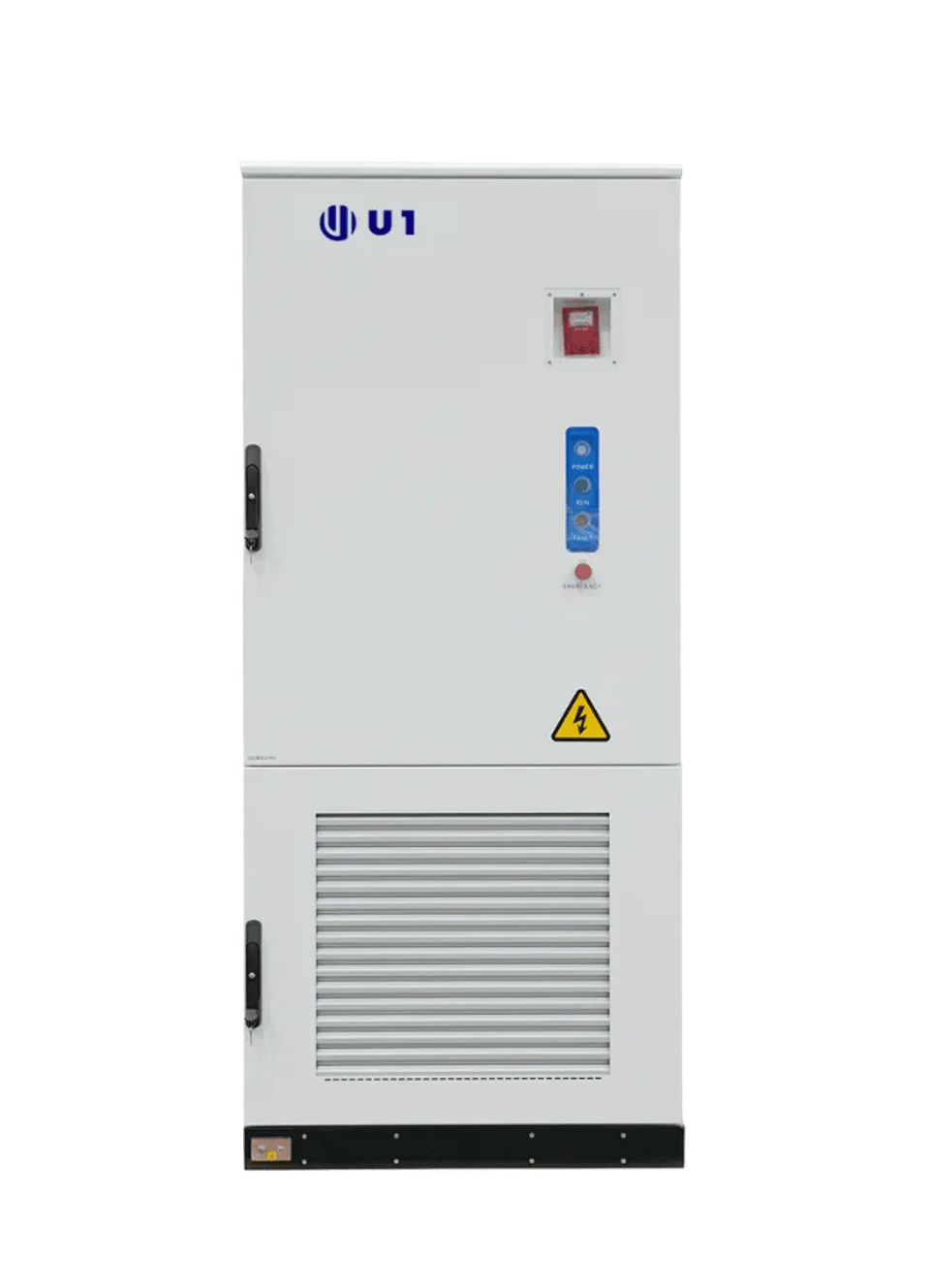

64WX Air-cooled Hybird Cabinet
64WX Air-cooled Hybird Cabinet

64WX Air-cooled Hybird Cabinet

UP-E64WX

The UP-E64WX is a compact PV-plus ESS solution, designed on ESS integration and digital monitoring technologies. The cabinet integrates components such as lithium battery, HVAC, fire suppression system (FSS), and EMS. With compact structure, it enables easy installation and flexible capacity expansion. Paired with hybrid inverter, the ESS supports multiple work modes and various operation strategies.

Learn More →

Main Features

Learn more about America's preeminent trusted computing innovator.

Ecnomical & Efficient

RTE over 87%, DOD over 100%.

Safe & Reliable

IP55, optimized ventilation design, temperature difference within 6°C.

Compact & Convenient

0.96m² footprint, easy to transport and install.

Expandable & Modular

Modular design supports parallel connection for convenient system expansion.

Versatile

Support multiple brands of hybrid inverter, with higher selectivity.

PV pluggable

Support PV connection, with higher integration.

Self-developed

PACK and EMS are all independently developed with good compatibility.

Easy O & M

Support multiple ways of operation and maintenance, including onsite, cloud.

Specifications

Battery Cabinet
Cell TypeLFP /120 Ah
Pack Configuration9.216 kWh / 1P24S
System Configuration / Rated DC Voltage64.512 kWh / 1P168S
Rated DC Voltage537.6 V
DC Voltage Range470.4 ~ 604.8 V
Max. Charge / Discharge Rate0.8 P
Max. Depth of Discharge100% (25 ± 2 ℃)
PV Input
Max. input power
37.5kW45kW54kW60kW75kW
PV Voltage200V~850V
MPPT4
MAX. Input Current30A*4
AC Side
Rated Output Power
25kW30kW36kW40kW50kW
Max. input power
27.5kVA33kVA39.6kVA44kVA55kVA
Rated AC Voltage400 V
AC Voltage Range±15%
Grid Type3W+N+PE
Rated Frequency50 Hz / 60 Hz
Power Factor0.99/ -1 ~ +1
THDi≤3%
DC Ratio＜0.5% Ipn
General
Round Trip Efficiency≥ 87%
Cycle Life≥ 5,500 cycles
CommunicationModbus TCP/IP
Fire Suppression SystemAerosol
Ingress RatingIP55
CoolingForced air cooling
Operating Temperature-25℃~55℃ (Derating after 45℃)
Anticorrosion RatingC4 (C5 optional)
Humidity0~95% RH (non-condensing)
Altitude4000m (Derating above 2000m)
Dimensions (W*D*H)800*1,200*2,030 mm
Weight1 t
CertificationUN38.3, IEC62477, IEC61000, IEC62619, IEC63056
